Vehicle Speed Sensor (VSS) Removal/Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  • If foreign materials are stuck to the VSS, disturbance by magnetic flux can cause sensor output to be abnormal and thereby negatively affect control. Make sure that foreign materials such as iron filings are not stuck to the VSS during installation.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Disconnect the VSS connector.
  4. Remove the VSS.
  5. Apply ATF to a new O-ring and install it on a new VSS.

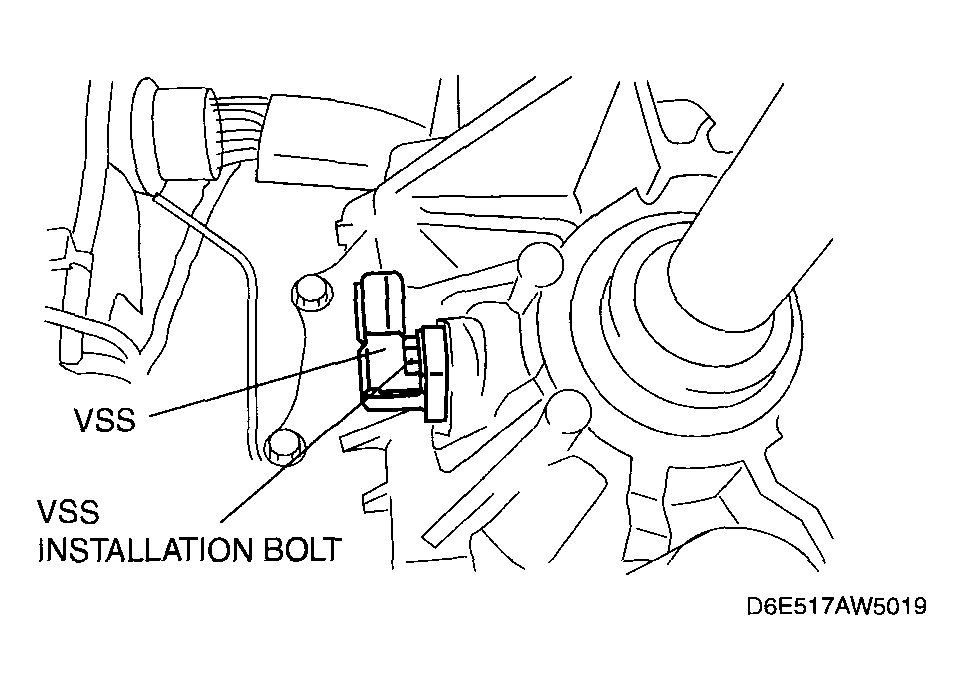

    Fig 1: Locating VSS
    G04326258Courtesy of MAZDA MOTORS CORP.
  6. Install the VSS.

    Tightening torque

    8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

  7. Connect the VSS connector.
  8. Install the under cover.
  9. Connect the negative battery cable.

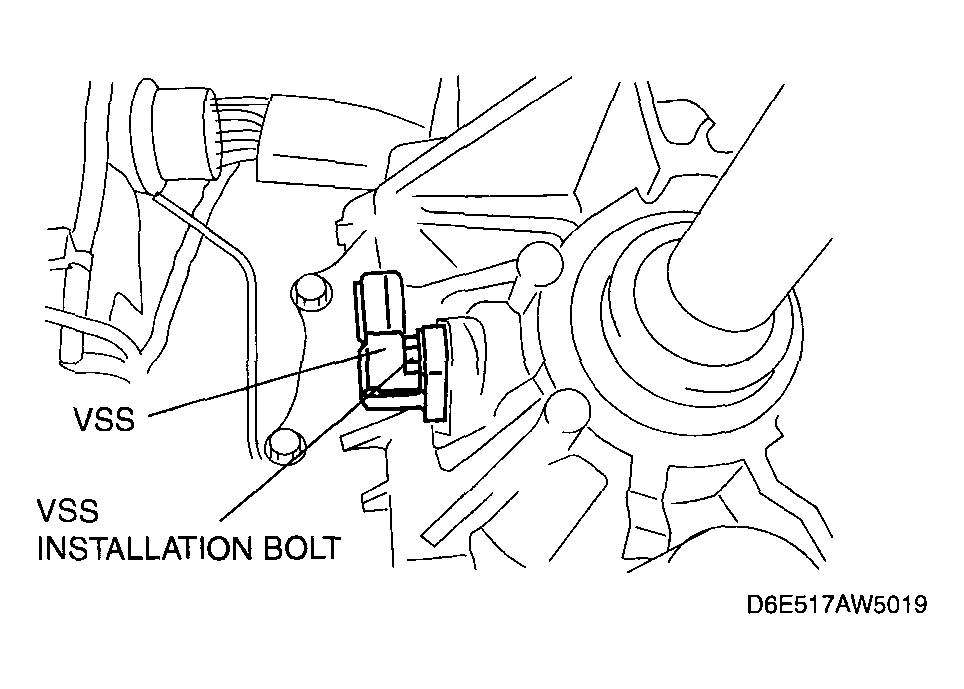

    Fig 2: Locating VSS
    G04326259Courtesy of MAZDA MOTORS CORP.
