Transaxle Range (Tr) Switch Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
    CAUTION:
    • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  3. Remove the clip and disconnect the selector cable.
    Fig 1: View Of Selector Cable And Mounting Hardware
    G04314390Courtesy of MAZDA MOTORS CORP.
  4. Rotate the manual shaft to the converter housing side fully, then return 2 notches to set the N position.
    Fig 2: Rotating Manual Shaft
    G04326230Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the TR switch connector.

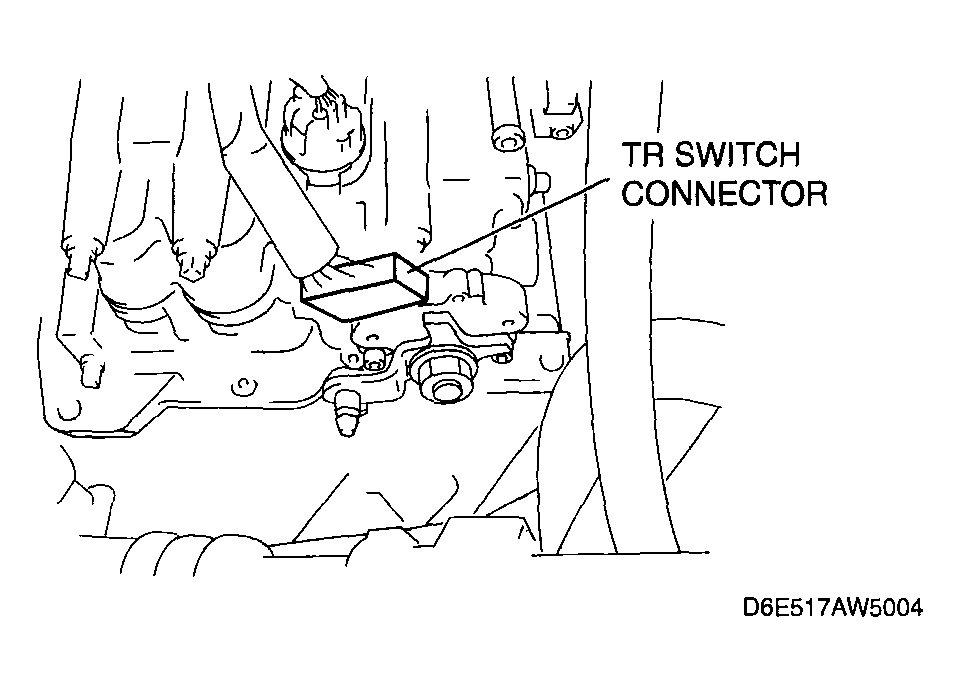

    Fig 3: Identifying TR Switch Connector
    G04326231Courtesy of MAZDA MOTORS CORP.
  6. Loosen the TR switch mounting bolts.
    Fig 4: Identifying TR Switch Mounting Bolts
    G04326232Courtesy of MAZDA MOTORS CORP.
  7. Measure the resistance between the terminals B and C.
  8. Adjust the switch to the point as follow.

    Resistance standard value

    750 ohms

    Fig 5: Identifying TR Switch Connector Terminals
    G04314463Courtesy of MAZDA MOTORS CORP.
  9. Tighten the TR switch mounting bolts.

    Tightening torque

    8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

  10. Move the selector lever to N position.
  11. Verify that the TR switch is aligned with N position.
  12. Connect the TR switch connector.
  13. Install the clip to the selector cable as shown in the figure.
    Fig 6: Installing Clip To Selector Cable
    G04326234Courtesy of MAZDA MOTORS CORP.
  14. Connect the selector cable to the manual shaft lever as shown in the figure.
  15. Inspect operation of the TR switch. (See TRANSAXLE RANGE (TR) SWITCH INSPECTION ). (See TRANSAXLE RANGE (TR) SWITCH INSPECTION ).
    • If not as specified, readjust the TR switch.
  16. Install the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  17. Connect the negative battery cable.
    Fig 7: Identifying Selector Cable
    G04314477Courtesy of MAZDA MOTORS CORP.
