TCM Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

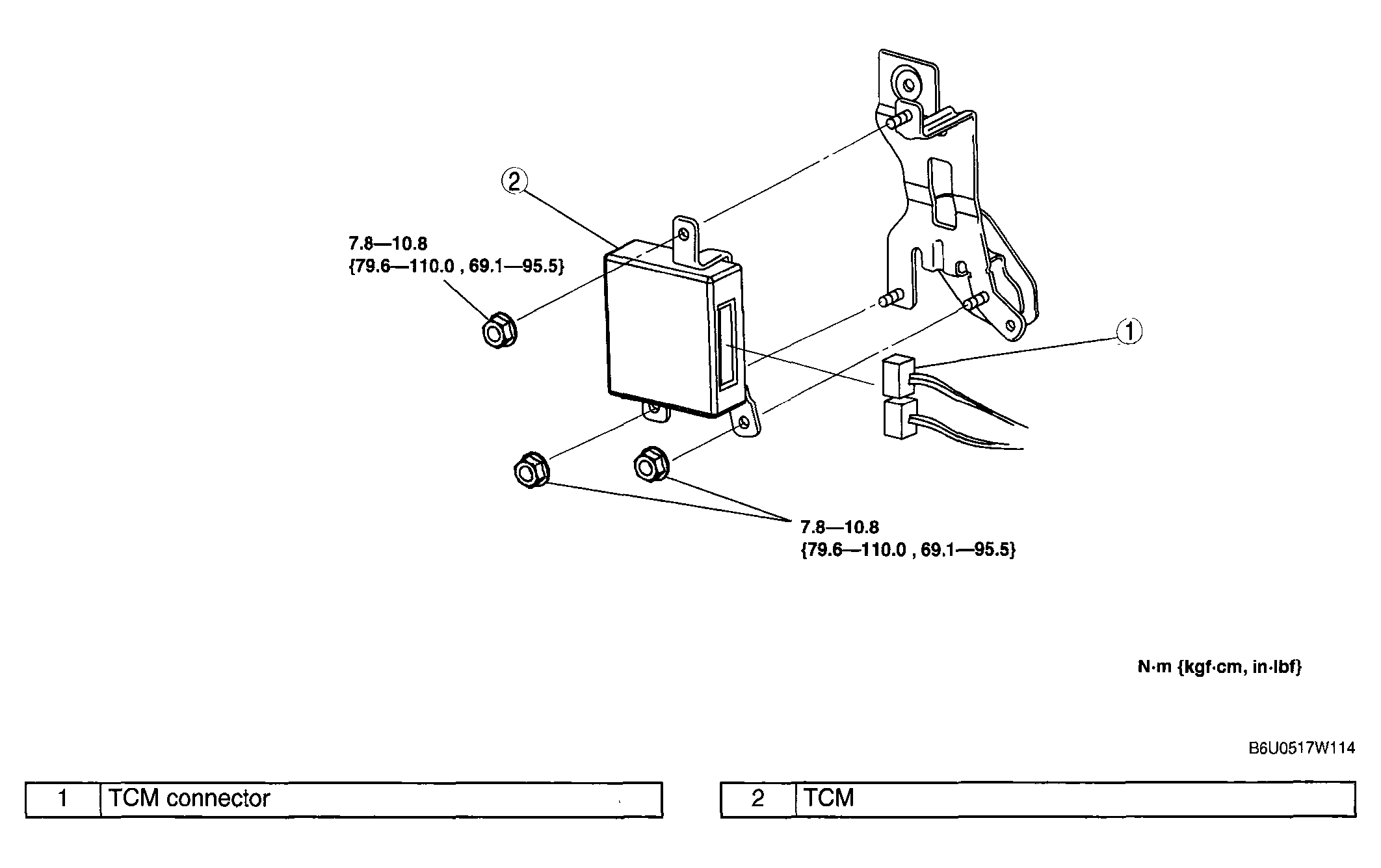

    Fig 1: TCM & Mounting Nuts Torque Specification [FS5A-EL]
    G04326285Courtesy of MAZDA MOTORS CORP.
