Resistance Inspection (On-Vehicle Inspection)

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery cable.
  2. Remove the battery and battery tray.
  3. Disconnect the transaxle connector (secondary).
    NOTE:
    • When inspecting the pressure control solenoid, connect the ground connection to the ground terminal (terminal I) of the pressure control solenoid inside the solenoid valve connector.

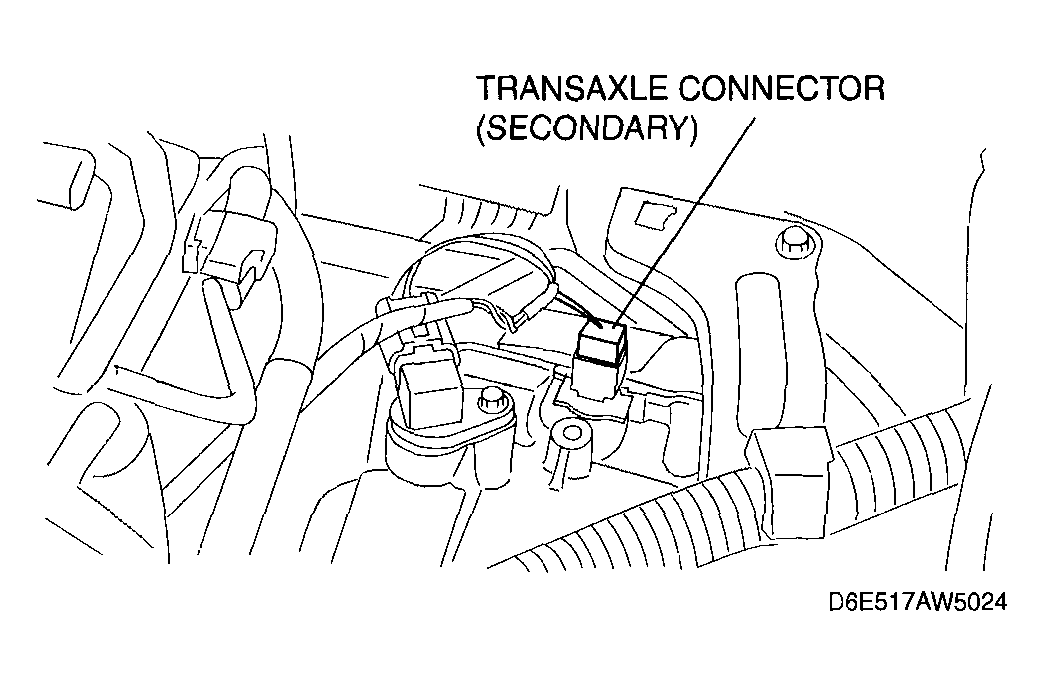

      Fig 1: Locating Transaxle Pressure Control Solenoid Connector
      G04326268Courtesy of MAZDA MOTORS CORP.
  4. Measure the resistance between the following terminals.
    • If not as specified, inspect the ground, then perform the operating inspection.

    Secondary control valve body (ATF temperature: -40-150 °C {-40-302 °F})

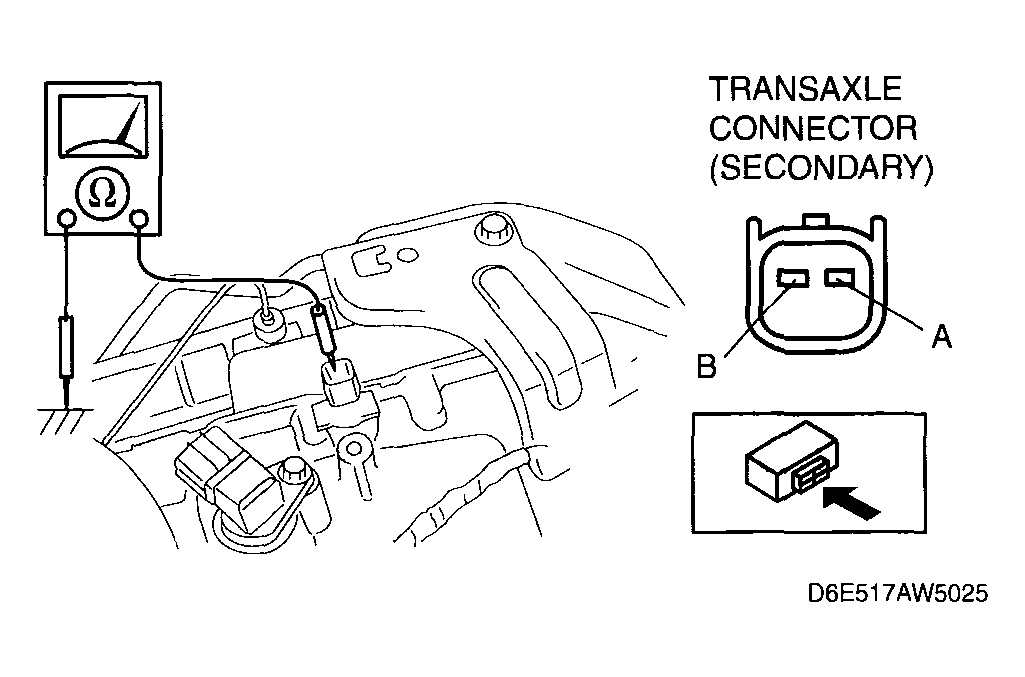

    Fig 2: Measuring Resistance Between Ground And Transaxle Connector Terminals (Secondary)
    G04326269Courtesy of MAZDA MOTORS CORP.
    TERMINAL SOLENOID VALVE AND RESISTANCE CHART

    Terminal Solenoid valve Resistance (ohm)
    A-GND Pressure control solenoid B 1.0-4.2
    B-GND Shift solenoid F 8.4-21.8
  5. Connect the transaxle connector (secondary).
  6. Install the battery and battery tray.
  7. Connect the negative battery cable.
