Resistance Inspection (On-Vehicle Inspection)

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  3. Disconnect the transaxle connector (primary).
    NOTE:
    • When inspecting the pressure control solenoid, connect the ground connection to the ground terminal (terminal I) of the pressure control solenoid inside the solenoid valve connector.

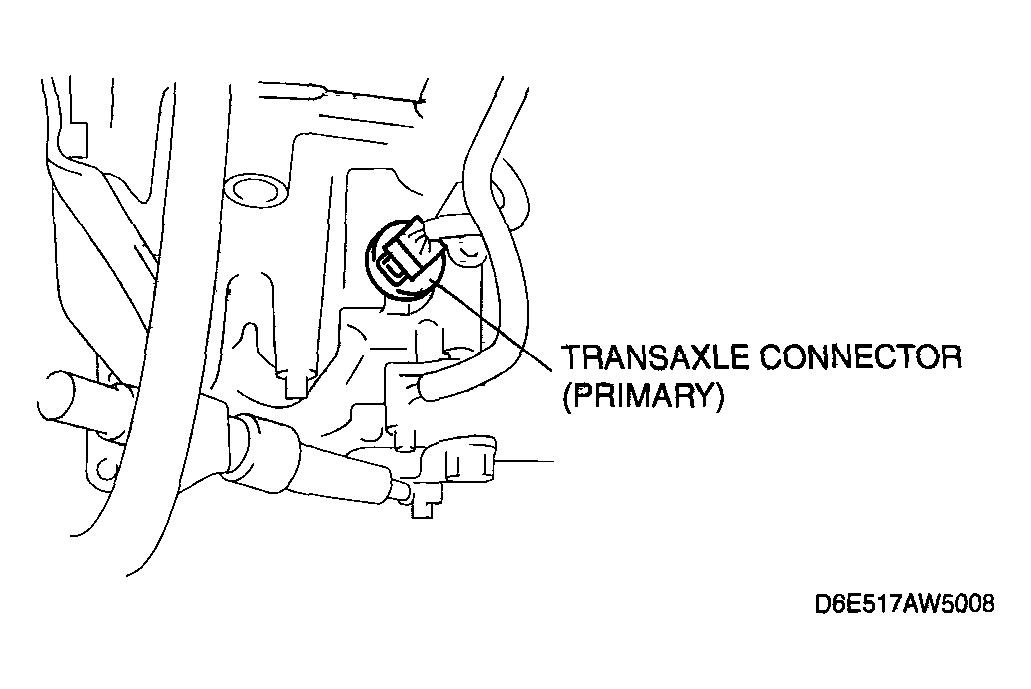

      Fig 1: Locating Transaxle Pressure Control Solenoid Valve
      G04326260Courtesy of MAZDA MOTORS CORP.
  4. Measure the resistance between the following terminals.
    • If not as specified, inspect the ground, then perform the operating inspection.

    Primary control valve body (ATF temperature: - 40-150 °C {-40-302 °F})

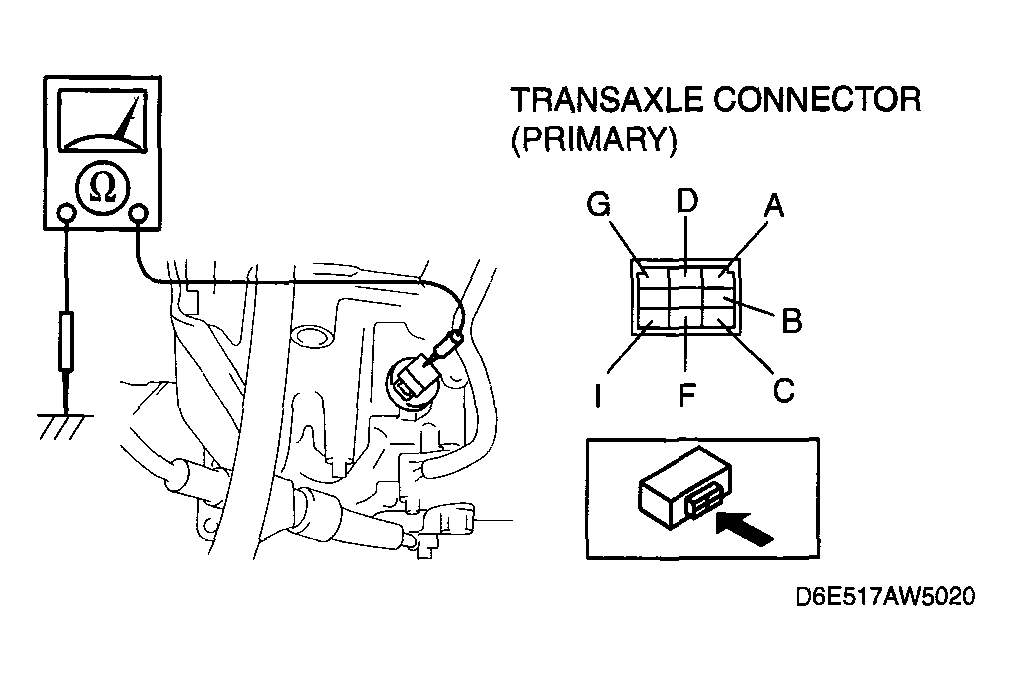

    Fig 2: Measuring Resistance Between Ground And Transaxle Connector Terminals
    G04326261Courtesy of MAZDA MOTORS CORP.
    TERMINAL SOLENOID VALVE AND RESISTANCE CHART

    Terminal Solenoid valve Resistance (ohm)
    A-GND Shift solenoid A 1.0-4.2
    C-GND Shift solenoid B 1.0-4.2
    G-GND Shift solenoid C 1.0-4.2
    B-GND Shift solenoid D 10.9-26.2
    F-GND Shift solenoid E 10.9-26.2
    D-I Pressure control solenoid A 2.4-7.3
  5. Connect the transaxle connector (primary).
  6. Install the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  7. Connect the negative battery cable.
