Section 23 (Automatic Transaxle [Service, Removal & Installation FS5A-El))
>>
Road Test
>>
Shift Diagram
Shift Diagram
WARNING:
This page is about a different variant/trim than selected.
D range (normal mode)

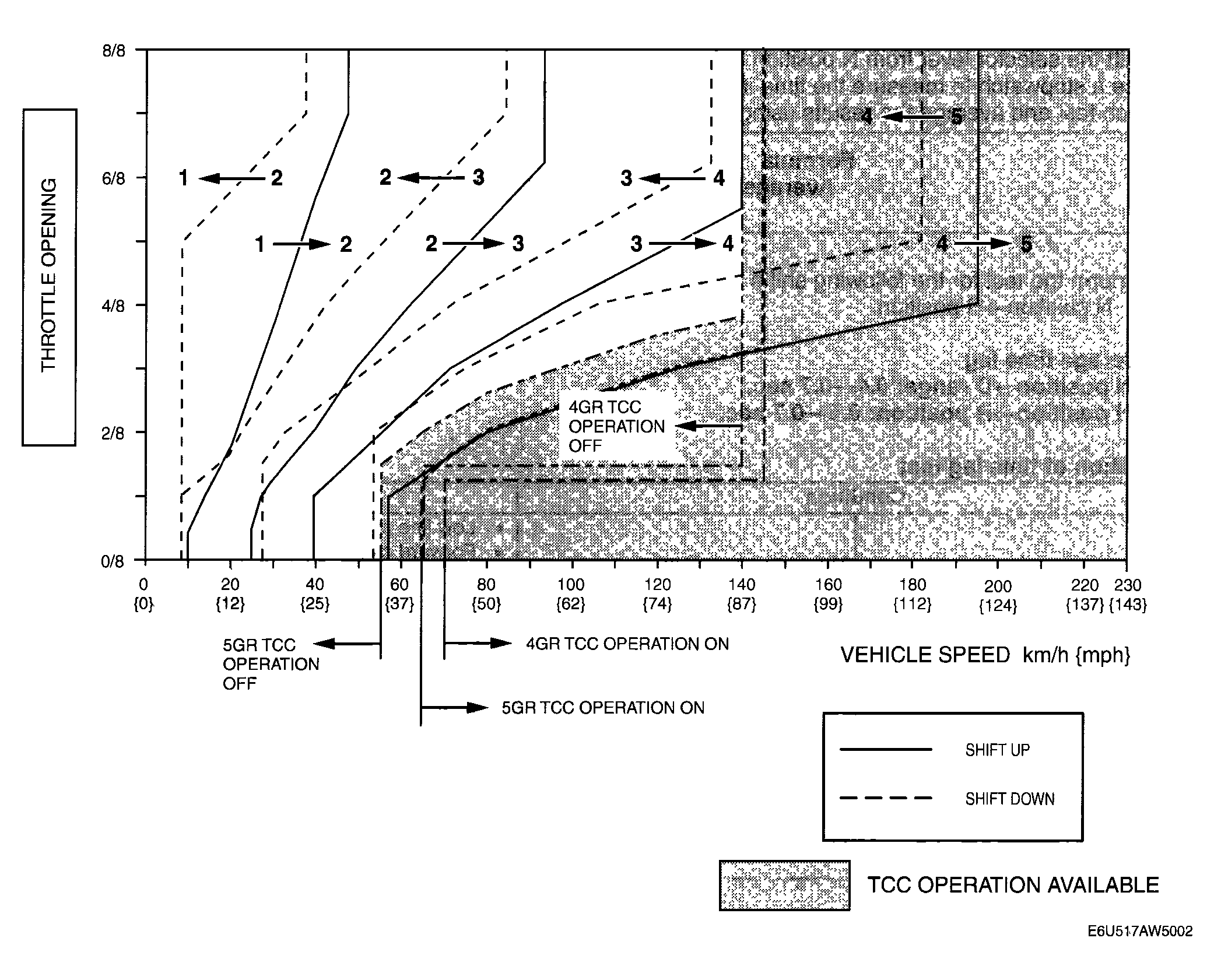

Fig 1: Shift Diagram - D Range (Normal Mode)
Courtesy of MAZDA MOTORS CORP.
