Oil Cooler Flushing: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The contaminated cooler line (oil pipes and hoses) and auxiliary cooler must be flushed completely when ATX is overhauled or replaced.

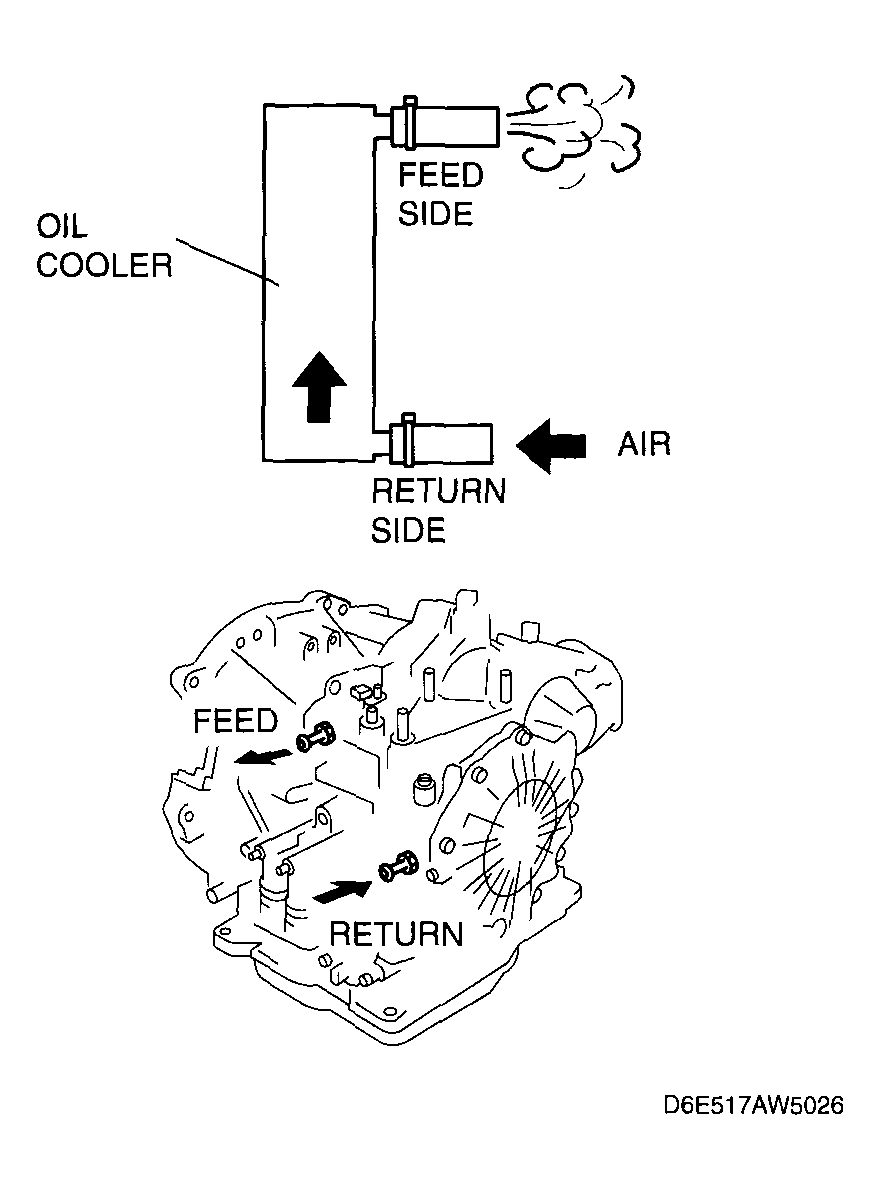

- Remove the two oil cooler line hoses and apply air pressure of 196 kPa {2.0 kgf/cm 2
, 28 psi}
from the return hose (pipe) side.CAUTION:
- Power flushing should be performed very carefully when removing the accumulated debris from the fluid baffle, otherwise the debris cannot be removed or the problem becomes even worse.
- If there is no air blown out the feed side, flush the oil cooler lines using the power-flushing tool. (See
POWER FLUSHING ).
Recommended power-flushing manufacturer
RECOMMENDED POWER-FLUSHING MANUFACTURERManufacturer Part number Description Kent Moore J35944-AMAZ Flushing kit or equivalent OTC 60081 Portable torque converter, oil cooler cleaner or equivalent - If there is ventilation, carry out the following steps.
- Remove the oil pan and inspect the fluid filter element from the front filter.
- If the element is covered with too much debris or particles and cannot be seen, replace the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION ). (See OIL COOLER DISASSEMBLY/ASSEMBLY ).
- If the element can be seen, flush the oil cooler lines using the power-flushing tool.
- Performing back and reverse power flushing two times each does not work because debris or particles flow out from the feed pipe side of ATX.
