Oil Cooler Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

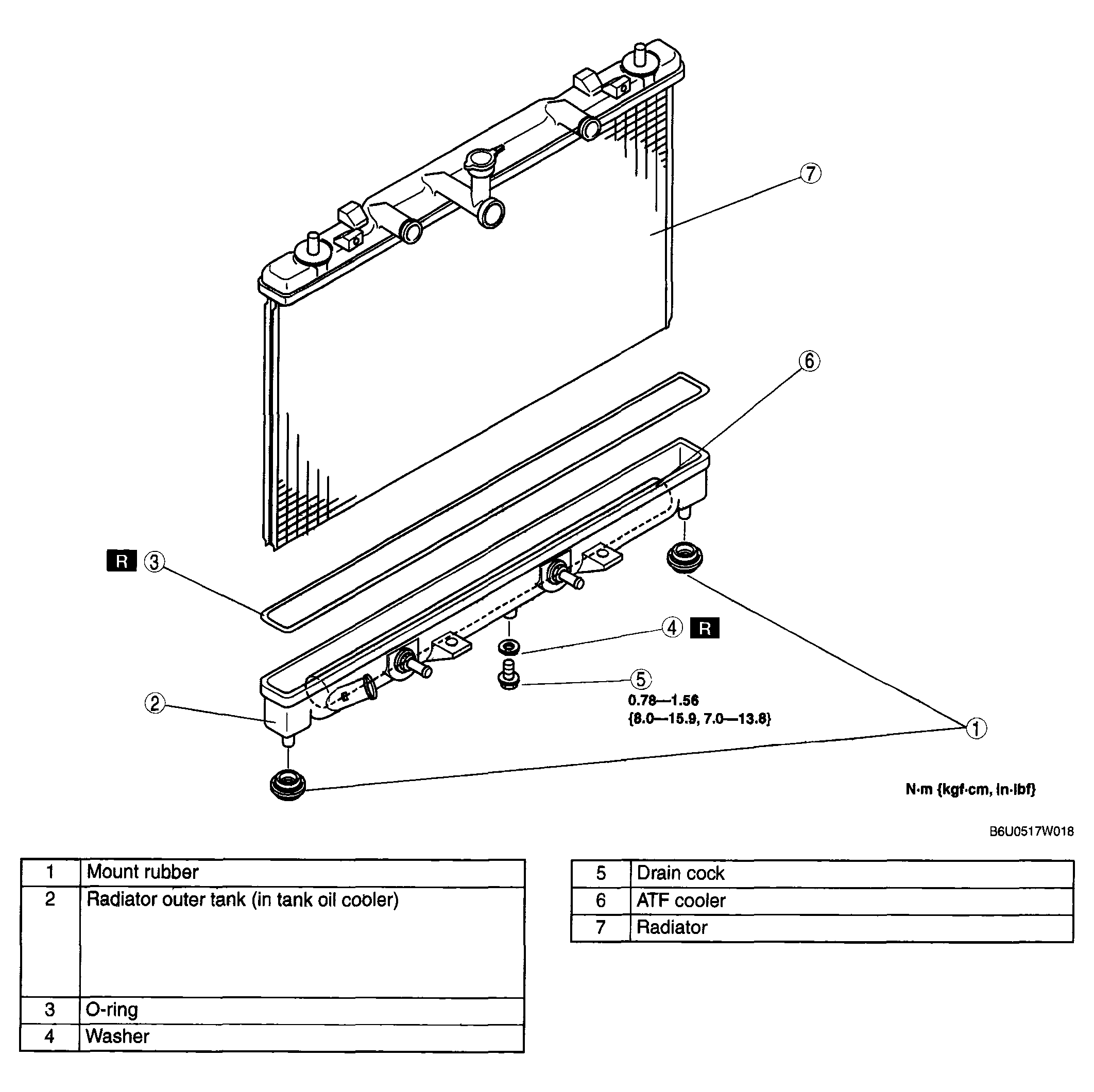

    Fig 1: Oil Cooler
    G04326325Courtesy of MAZDA MOTORS CORP.
