Input/Turbine Speed Sensor Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  4. Disconnect the input/turbine speed sensor connector.
  5. Remove the input/turbine speed sensor.
  6. Apply ATF to a new O-ring and install it on a new input/turbine speed sensor.
  7. Install the input/turbine speed sensor.

    Tightening torque

    8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}

  8. Connect the input/turbine speed sensor connector.
  9. Install the air cleaner component. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
  10. Install the battery and battery tray.
  11. Connect the negative battery cable.

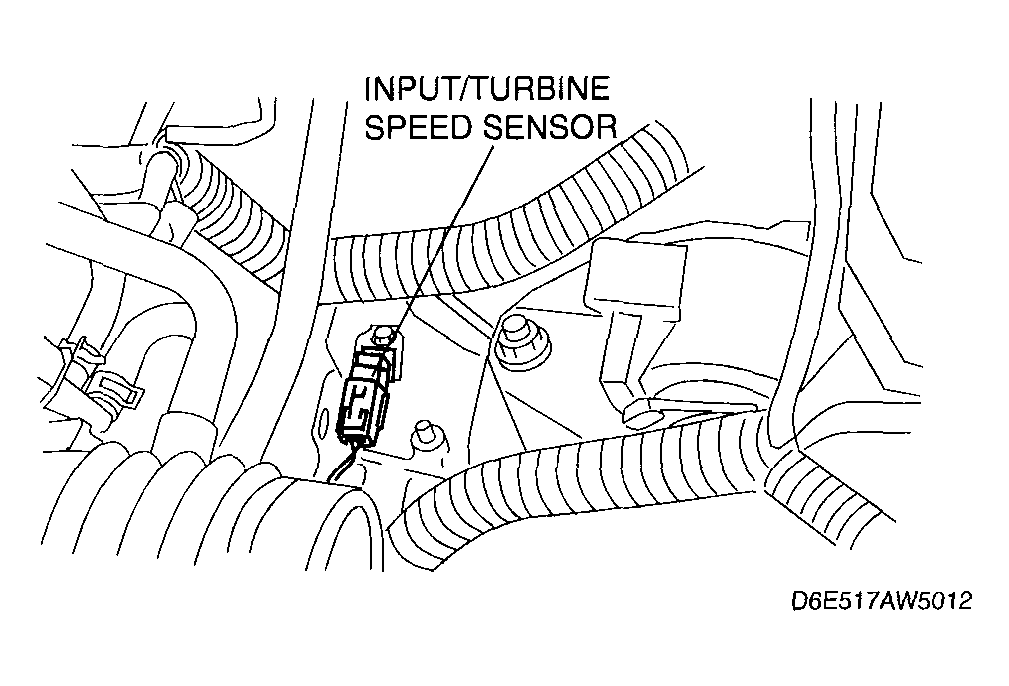

    Fig 1: Locating Input/Turbine Speed Sensor
    G04326249Courtesy of MAZDA MOTORS CORP.
