Drive Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the figure.
  3. Install in the reverse order of removal.

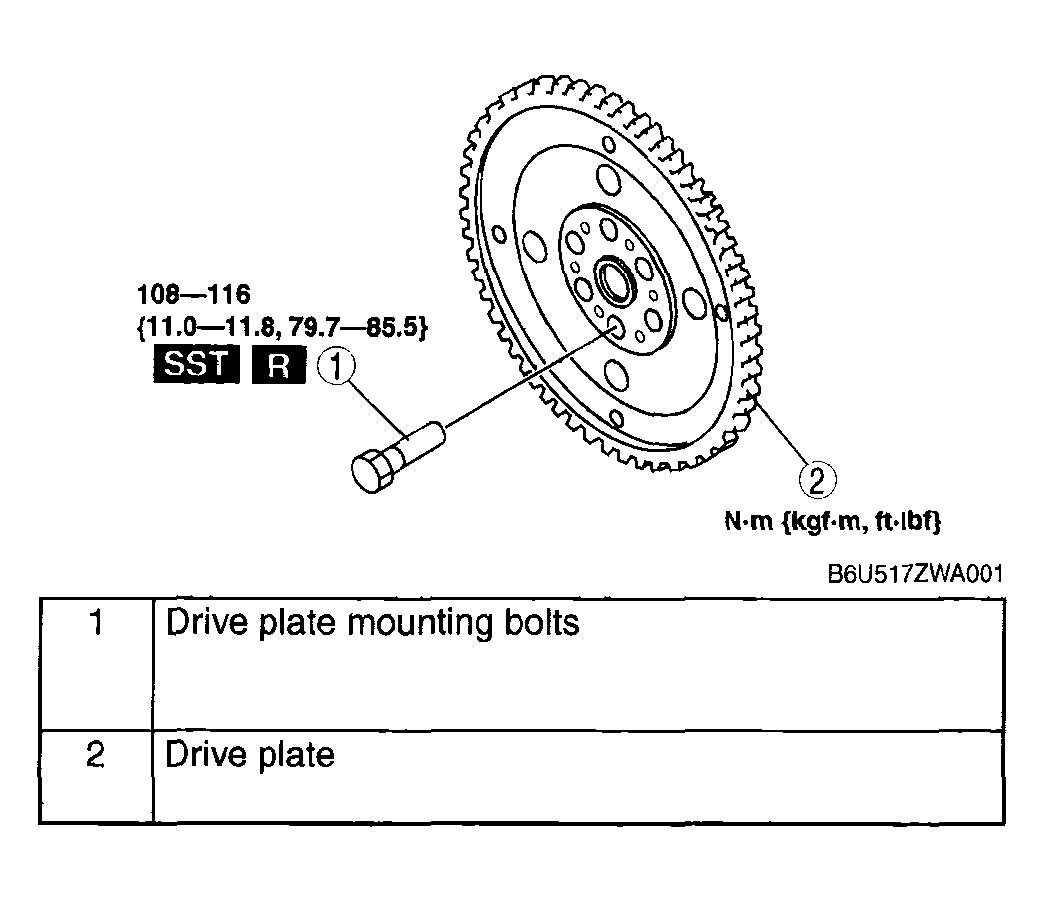

    Fig 1: Drive Plate Mounting Bolt And Torque Specification
    G04326332Courtesy of MAZDA MOTORS CORP.
