Torque Converter Nuts Removal Note
WARNING: This page is about a different variant/trim than selected.

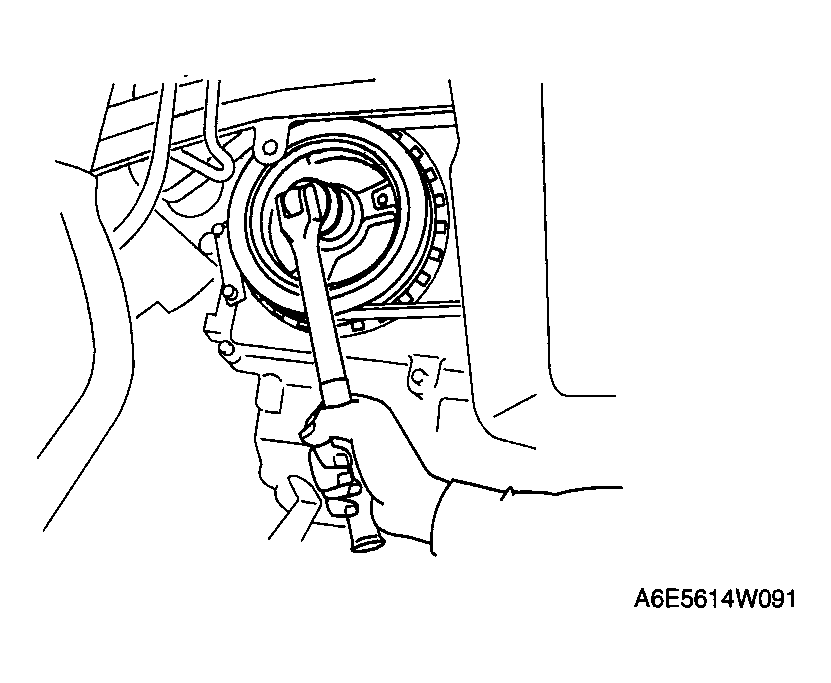

- Hold the crankshaft pulley to prevent drive plate from rotating.
Courtesy of MAZDA MOTORS CORP.
- Remove the torque converter nuts from the starter installation hole.
Courtesy of MAZDA MOTORS CORP.
