No.4 Engine Mount Bracket Removal Note

WARNING: This page is about a different variant/trim than selected.

Install the SST using the following procedure.
CAUTION:
- Refer to for the basic handing procedure.

  Fig 1: Identifying Special Engine Support Tool
  Courtesy of MAZDA MOTORS CORP.

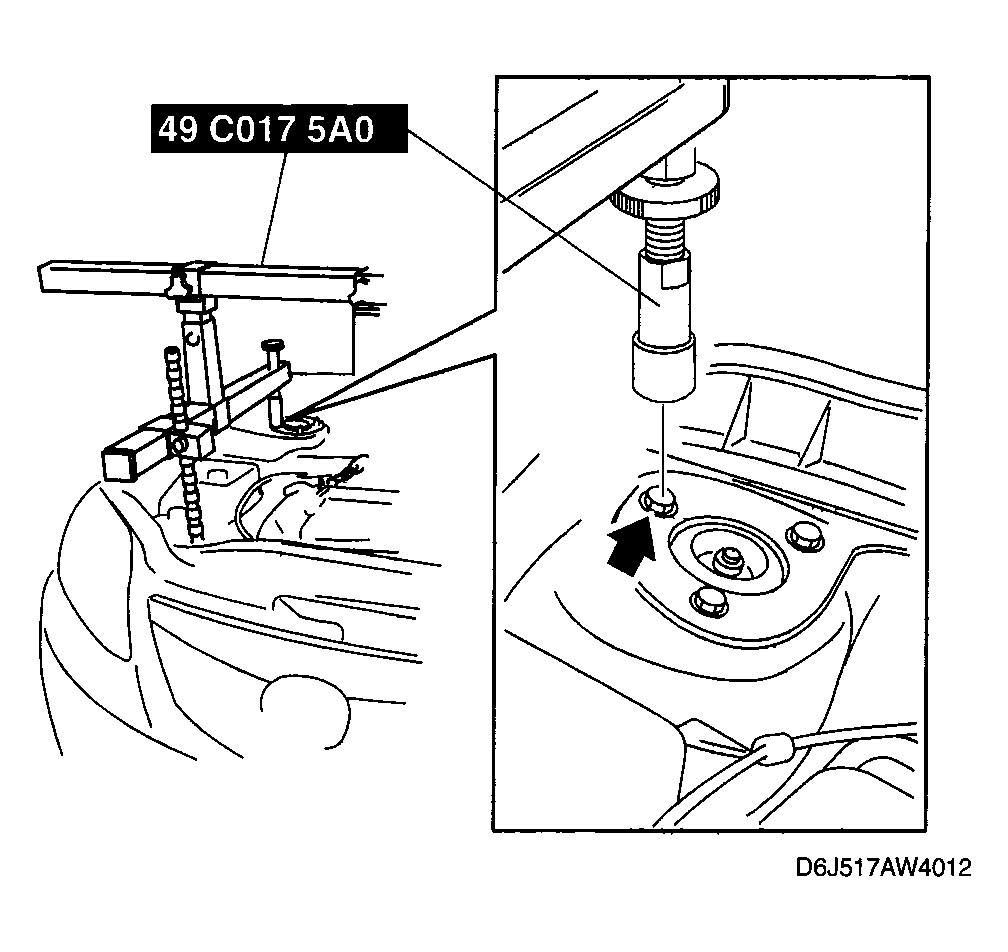

1. Install the right rear shaft of the SST to the bolt of the right shock absorber as shown in the figure.
2. Install the left rear shaft of the SST to the bolt of the left shock absorber. (Identical position to the right side)
  CAUTION:
  - When setting the SST on the right side, make sure it doesn't interfere with the ABS/TCS HU/CM.

    Fig 2: Installing Right Rear Shaft Of SST To Bolt Of Right Shock Absorber
    Courtesy of MAZDA MOTORS CORP.

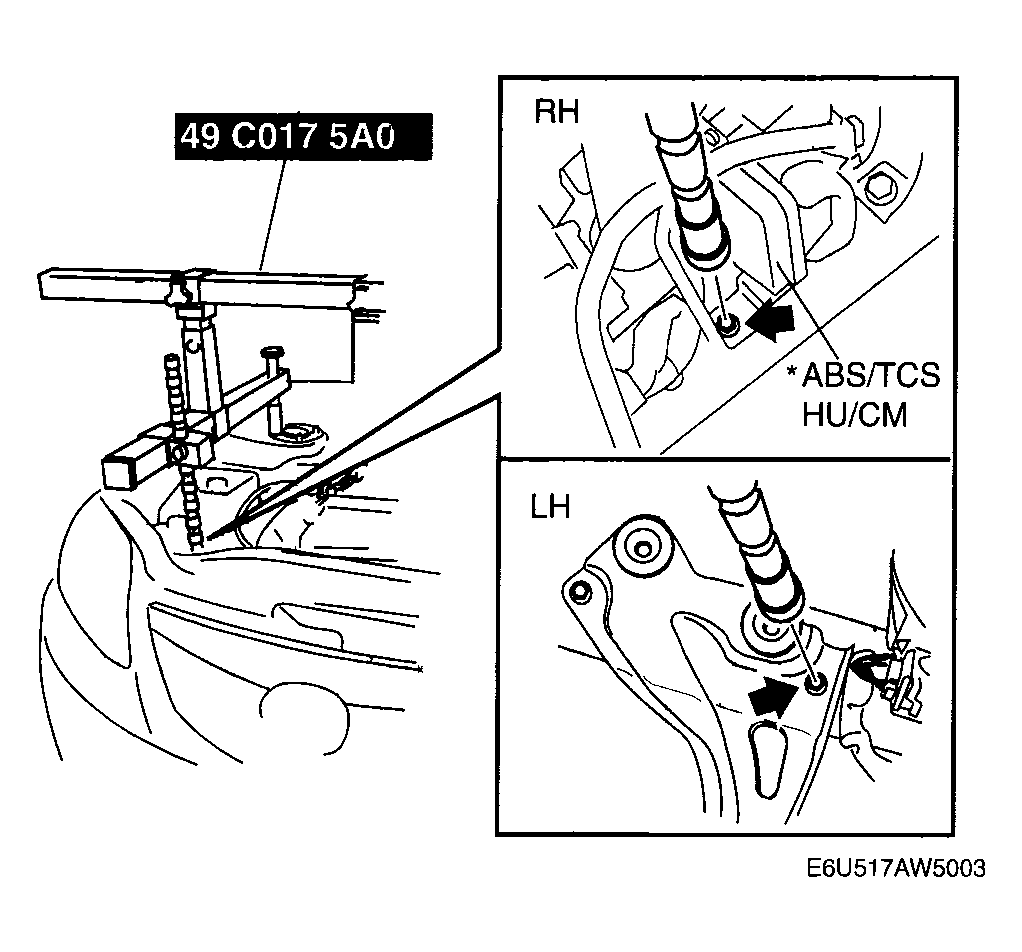

3. Install the left/right front shaft of the SST with front foot No.2 to the bolt as shown in the figure.
  * : If equipped.
4. Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal.
5. Make sure each joint is securely tightened.

  Fig 3: Installing Left/Right Front Shaft Of SST With Front Foot No.2 To Bolt
  Courtesy of MAZDA MOTORS CORP.
Support the engine using the SST .
NOTE:
- The SST (49 E017 5A0) can be used in place of the SST (49 C017 5A0).
Remove the No.4 engine mount.

Fig 4: Supporting Engine Using SST
Courtesy of MAZDA MOTORS CORP.
