Flywheel Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Hold the flywheel using the SST.
  2. Remove the bolts evenly and gradually in a crisscross pattern.
  3. Remove the flywheel.

G35M-R manual transaxle models

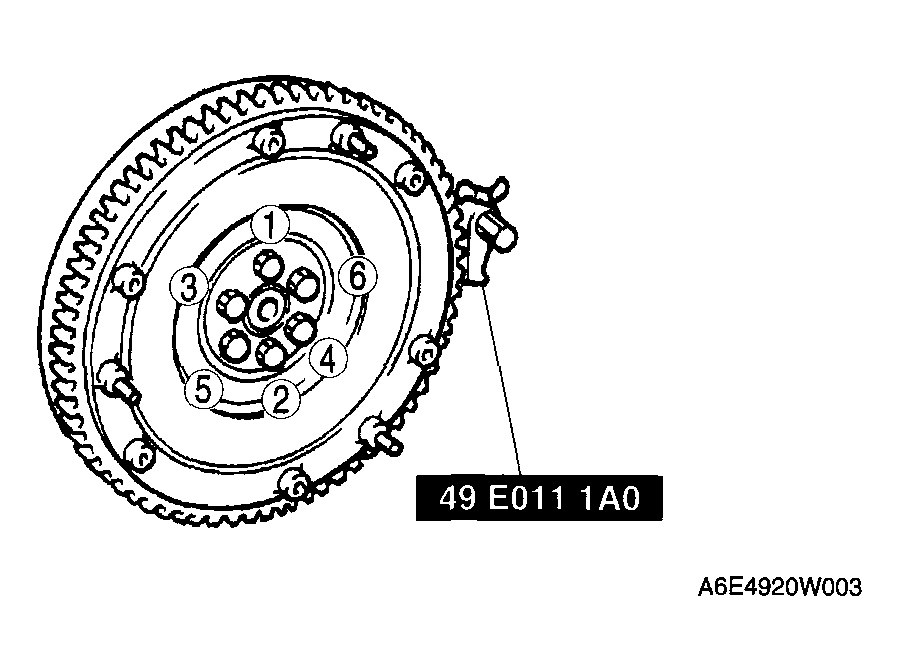

Fig 1: Removing Flywheel & Mounting Bolt Removal Sequence (G35M-R Manual Transaxle Models)
G04326095Courtesy of MAZDA MOTORS CORP.

A65M-R manual transaxle models

Fig 2: Removing Flywheel & Mounting Bolt Removal Sequence (A65M-R Manual Transaxle Models)
G04326096Courtesy of MAZDA MOTORS CORP.
