Section 22 (Manual Transaxle Clutch)
>>
Clutch Unit Removal/Installation [G35M-R, A65M-R]
>>
A65M-R Manual Transaxle Models
A65M-R Manual Transaxle Models
WARNING:
This page is about a different variant/trim than selected.

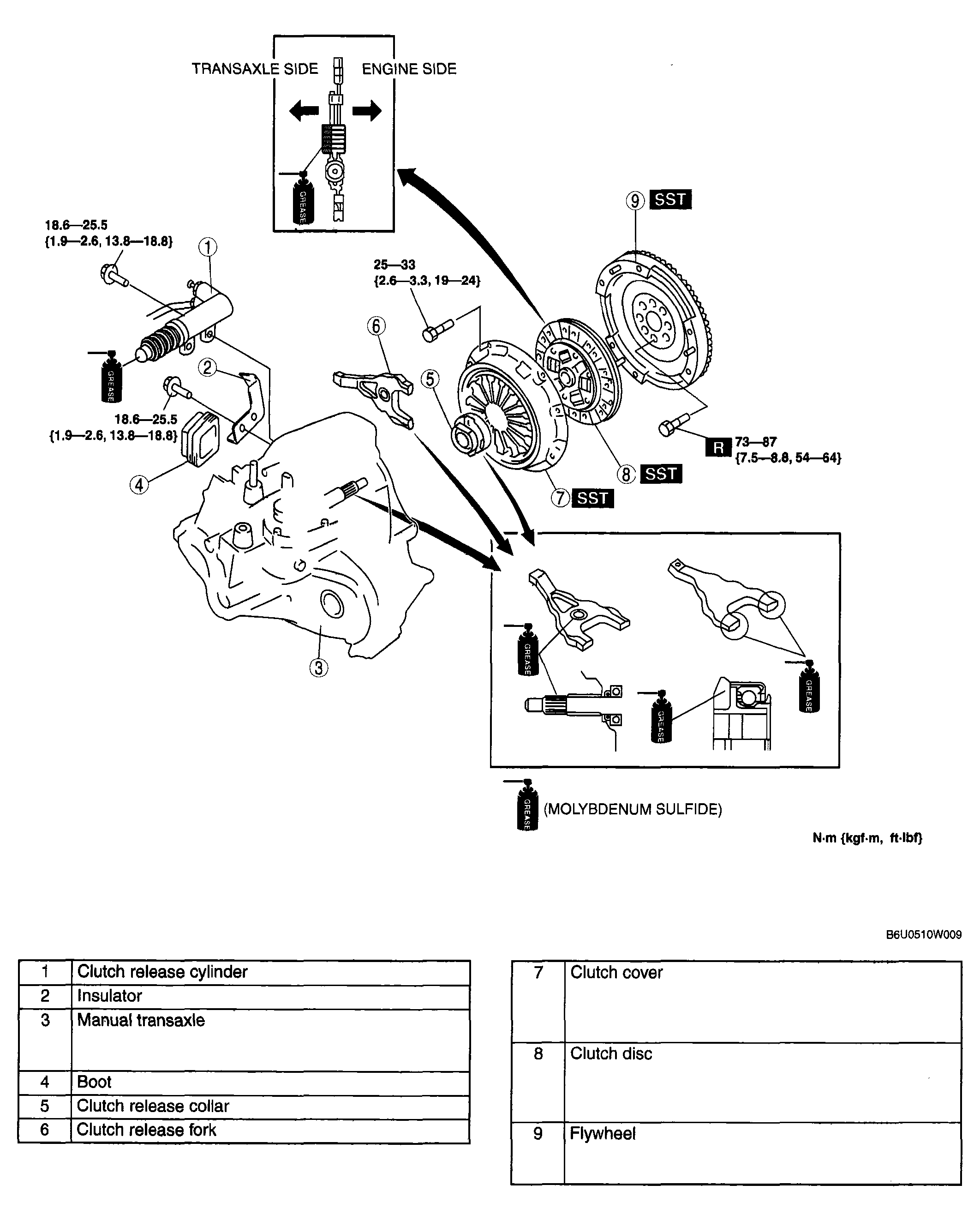

Fig 1: Clutch Unit & Torque Specification (A65M-R)
Courtesy of MAZDA MOTORS CORP.
