Pilot Bearing Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Use the SSTs  to install the pilot bearing.

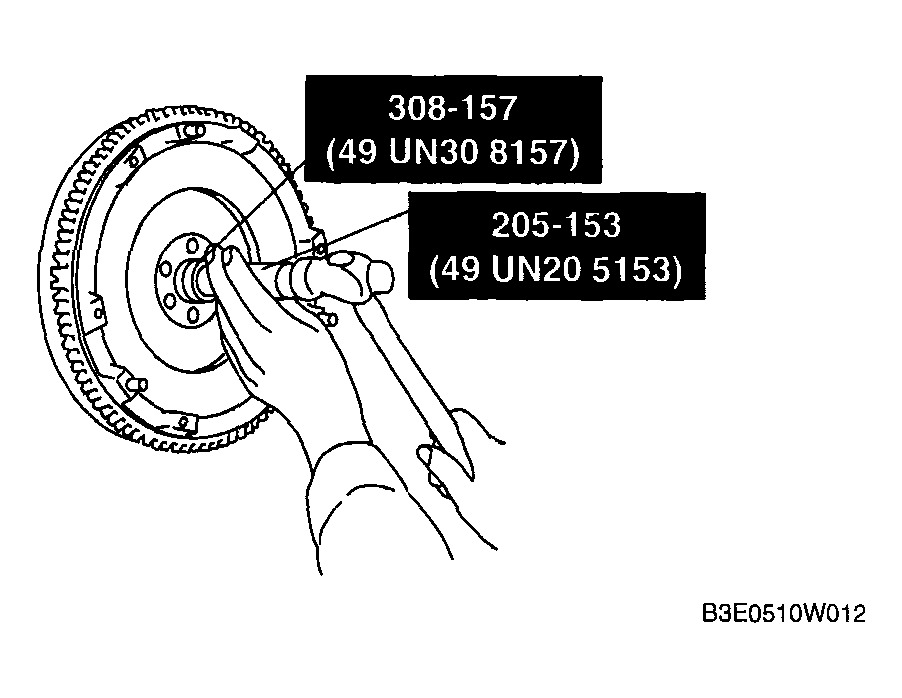

    Fig 1: Installing Pilot Bearing
    G04326108Courtesy of MAZDA MOTORS CORP.
    Fig 2: Pilot Bearing Installed Depth
    G04326109Courtesy of MAZDA MOTORS CORP.
