Clutch Cover and Disc Removal Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • When replacing components, always replace as a complete set.
  • Due to the automatic adjustment function of clutch cover, if the old cover assembly is reused, it must be reinstalled together with its original clutch disc.
  1. Install the SSTs.
  2. Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
  3. Remove the clutch cover and disc.

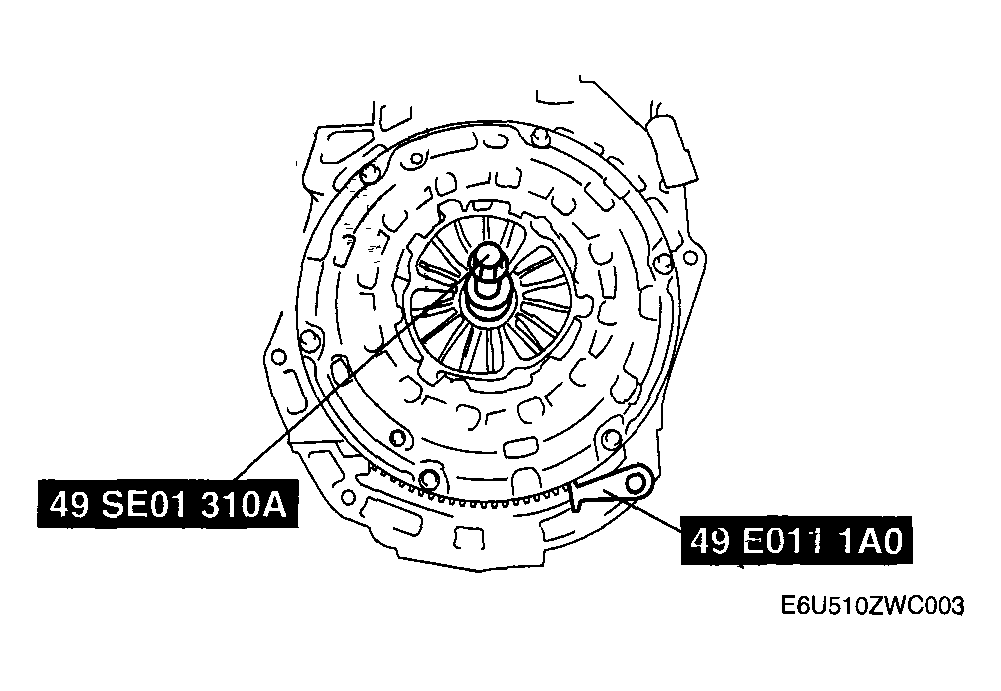

    Fig 1: Clutch Aligning Tool & Flywheel Holding Tool
    G04326106Courtesy of MAZDA MOTORS CORP.
