Clutch Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the SSTs .
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque

25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

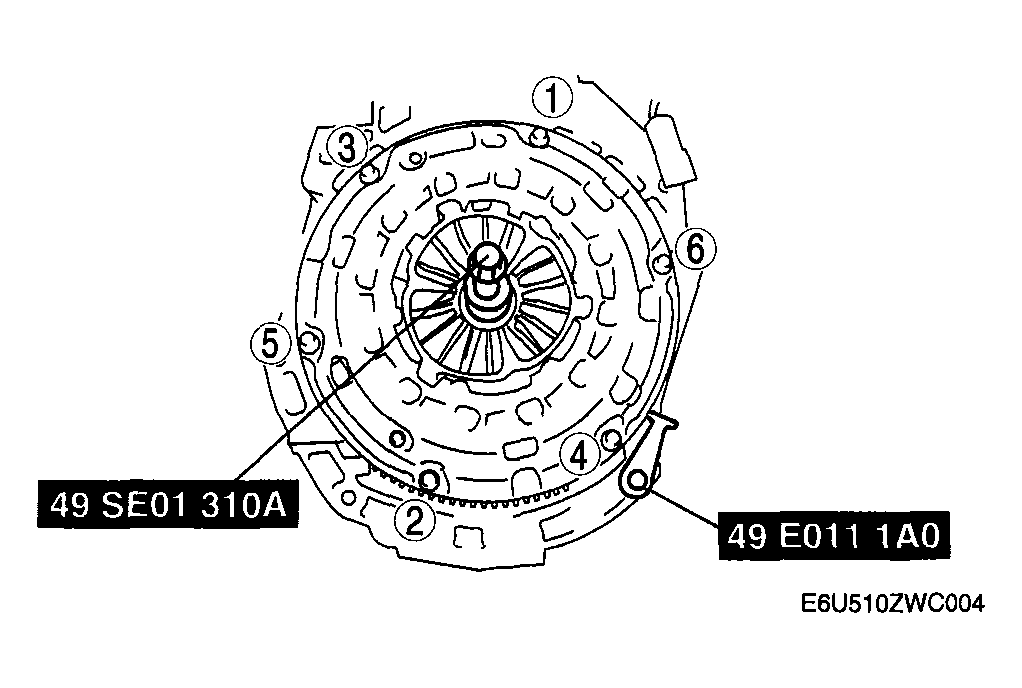

Fig 1: Clutch Cover Mounting Bolt Tightening Sequence, Alignment Tool & Flywheel Holding Tool
Courtesy of MAZDA MOTORS CORP.
