Clutch Release Cylinder Removal/Installation [A26MX-R]
WARNING: This page is about a different variant/trim than selected.
- Remove the under cover.

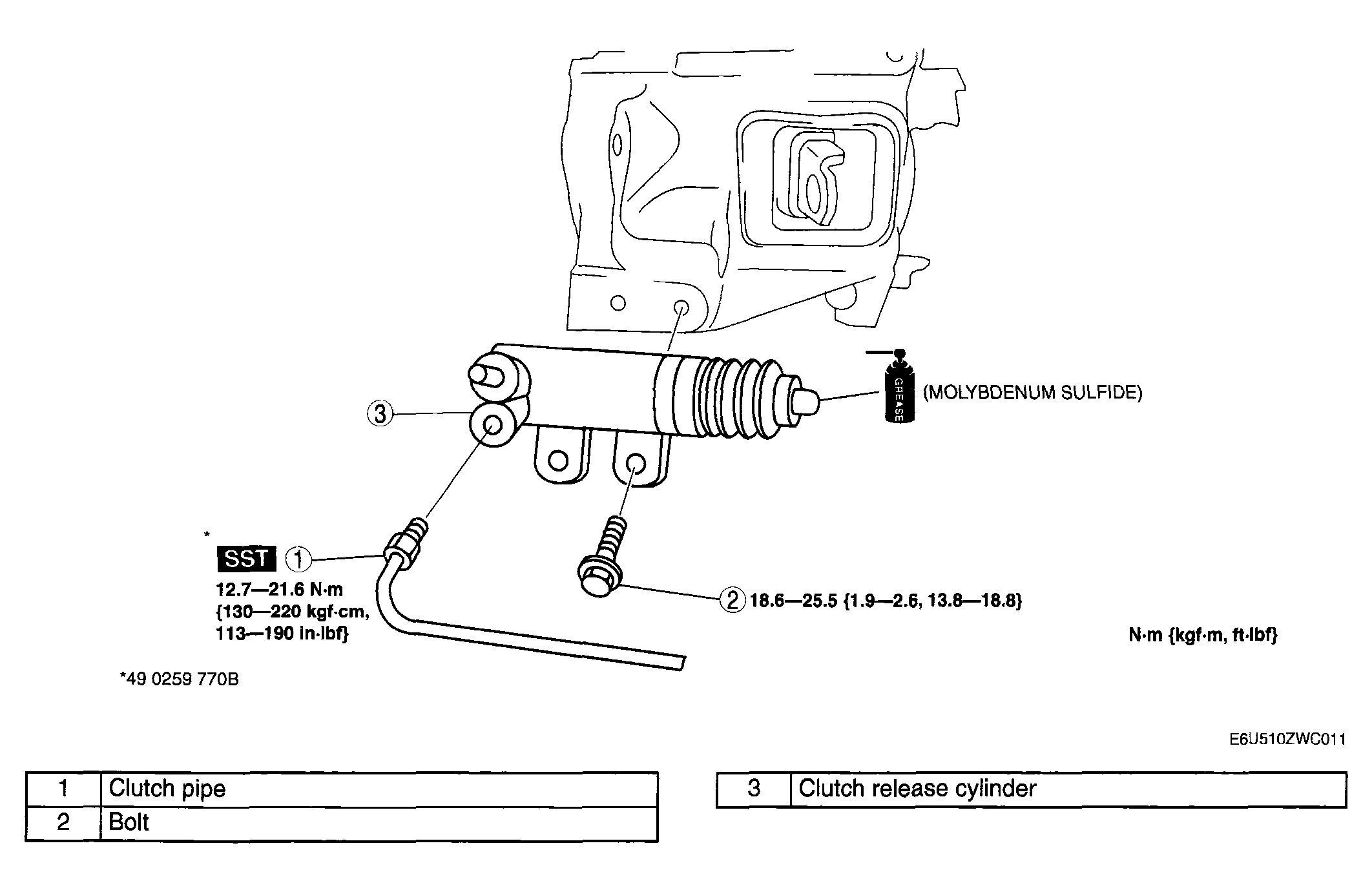

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
