Clutch Release Cylinder Disassembly/Assembly [A26MX-R]

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

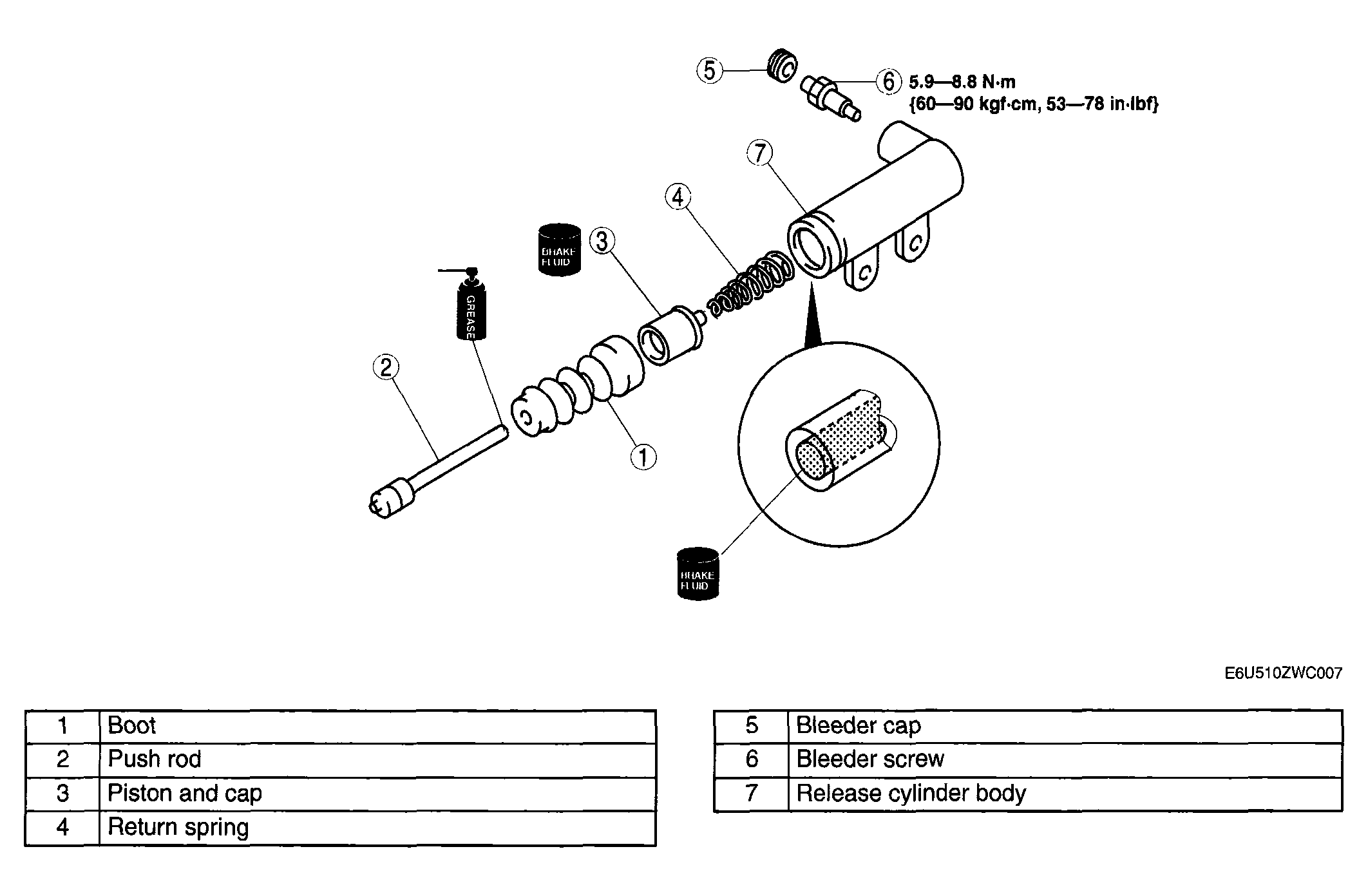

    Fig 1: Clutch Release Cylinder & Torque Specification (A26MX-R)
    G04326089Courtesy of MAZDA MOTORS CORP.
