Starter Interlock Switch Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Insert the new starter interlock switch into hole in pedal bracket in arrow direction A.
  2. Slide starter interlock switch pressing it in arrow direction B until locked.
  3. Press clutch pedal fully in arrow direction C and adjust terminal of starter interlock switch.

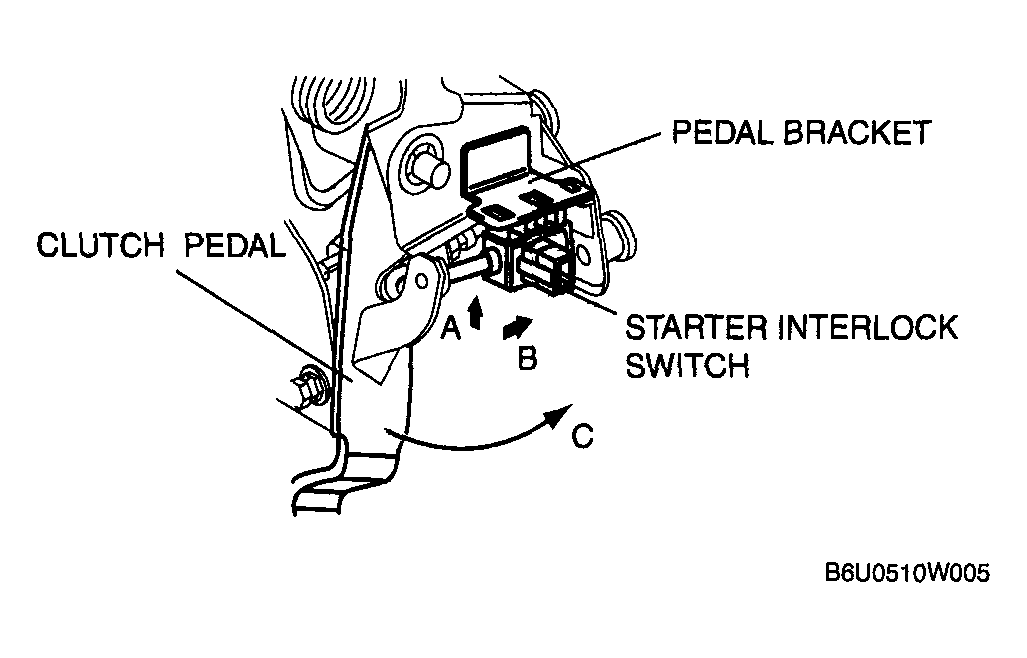

    Fig 1: Starter Interlock Switch
    G04326076Courtesy of MAZDA MOTORS CORP.
