Clutch Pedal Removal/Installation [G35M-R, A65M-R]: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery and battery tray.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. After installation, inspect the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT ).

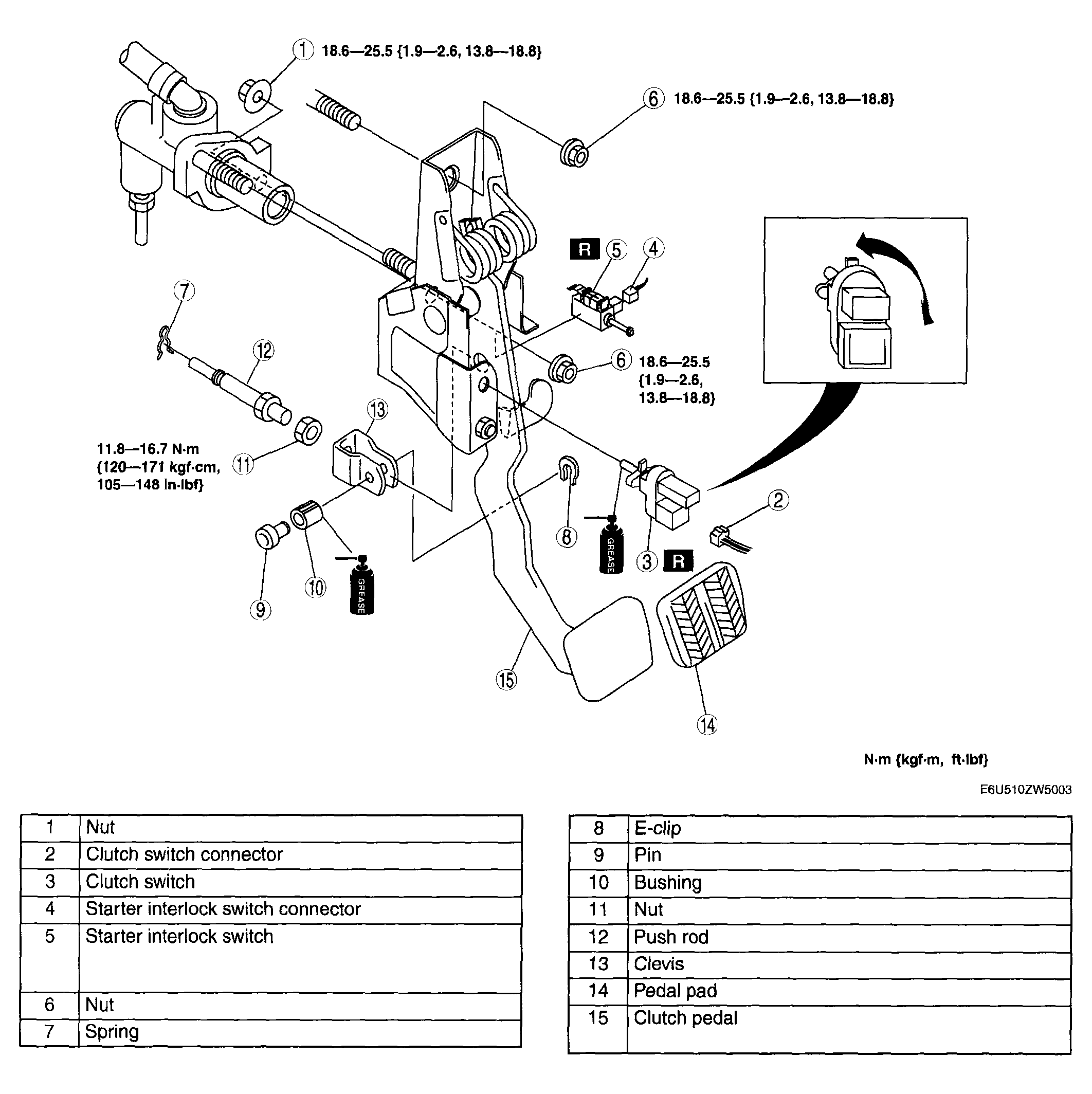

    Fig 1: Clutch Pedal Assembly & Torque Specification
    G04326075Courtesy of MAZDA MOTORS CORP.
