Starter Interlock Switch Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Insert the starter interlock switch into the hole in the pedal bracket in the direction indicated by A.
  2. Slide the starter interlock switch press it in the direction indicated by B until locked.
  3. Press the clutch pedal fully in the direction indicated by C and adjust the starter interlock switch terminal.

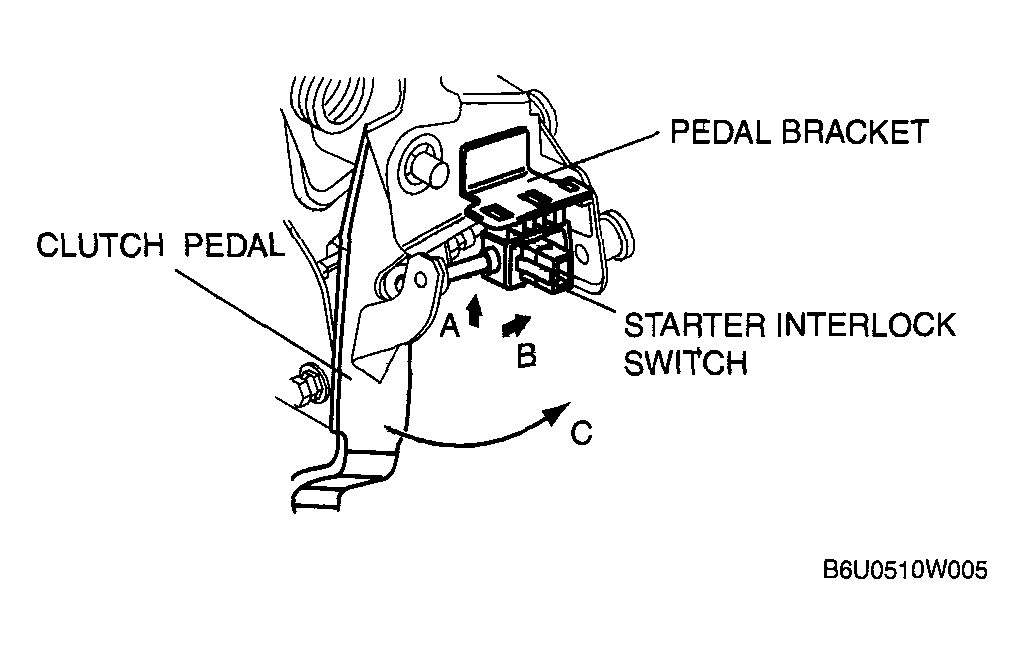

    Fig 1: Starter Interlock Switch
    G04326078Courtesy of MAZDA MOTORS CORP.
