Clutch Pedal Free Play

WARNING: This page is about a different variant/trim than selected.

Depress the clutch pedal by hand until clutch resistance is felt, and measure the pedal free play.
- If not as specified, adjust the pedal free play by loosening locknut C and turning push rod D as necessary.
  Clutch pedal free play

  1.0-3.0 mm {0.04-0.11 in}

  Clutch pedal push rod free play

  0.1-0.5 mm {0.004-0.020 in} (Reference value)

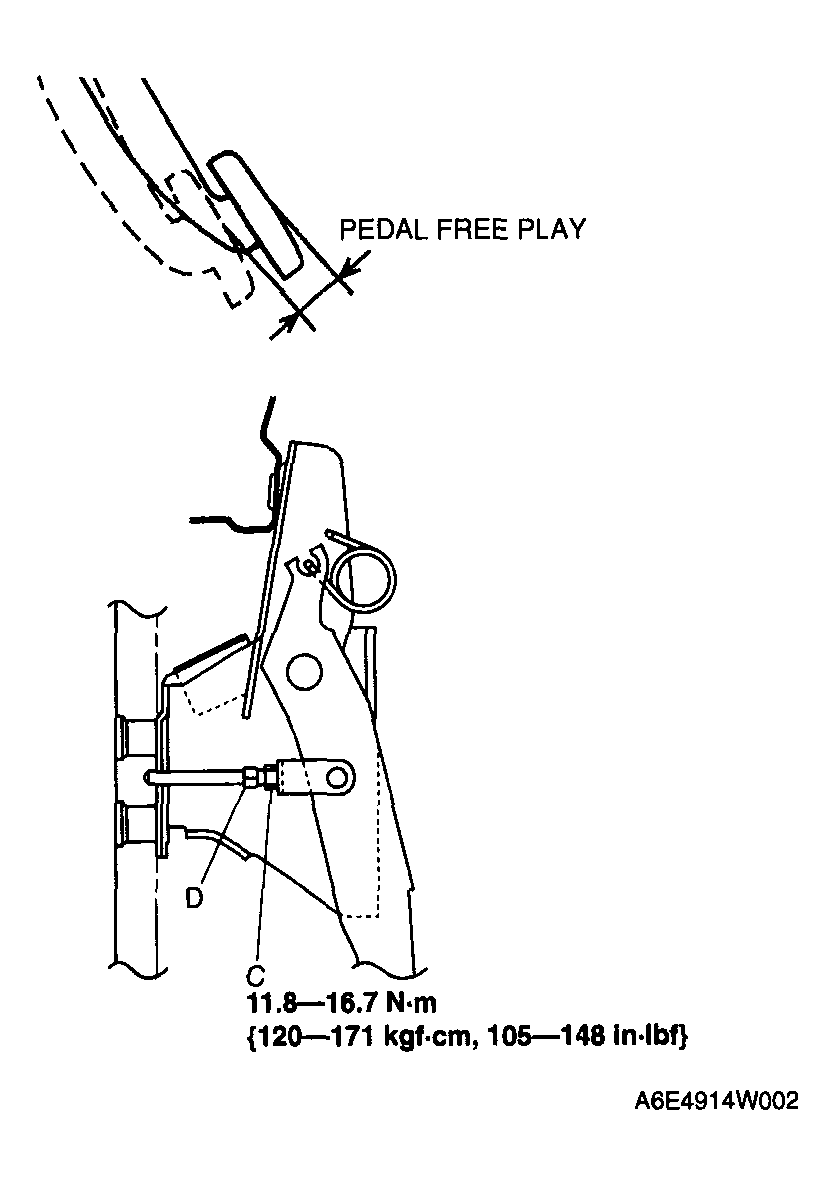

  Fig 1: Adjusting Clutch Pedal Free Play & Torque Specification
  Courtesy of MAZDA MOTORS CORP.
