Clutch Cover Inspection [A26MX-R]

WARNING: This page is about a different variant/trim than selected.

Measure the wear of the diaphragm spring fingers.
- If it exceeds the maximum specification, replace the clutch cover.
Clutch coyer diaphragm spring fingers maximum depth [A26MX-R]

0.6 mm {0.024 in}

Fig 1: Measuring Diaphragm Spring Fingers
Courtesy of MAZDA MOTORS CORP.
Measure the flatness of the pressure plate with a straight edge and a feeler gauge.
- If it exceeds the maximum specification, replace the clutch cover.
Maximum clearance of flatness of the pressure plate [A26MX-R]

0.3 mm {0.012 in}
When checking the diaphragm spring fingers, mount a dial indicator on the cylinder block.

Fig 2: Measuring Flatness Of Pressure Plate With A Straight Edge And A Feeler Gauge
Courtesy of MAZDA MOTORS CORP.
Rotate the flywheel and check for misaligned diaphragm spring fingers.
- If it exceeds the maximum specification, replace the clutch cover.
Clutch cover diaphragm spring fingers maximum misalignment [A26MX-R]

1.0 mm {0.039 in}

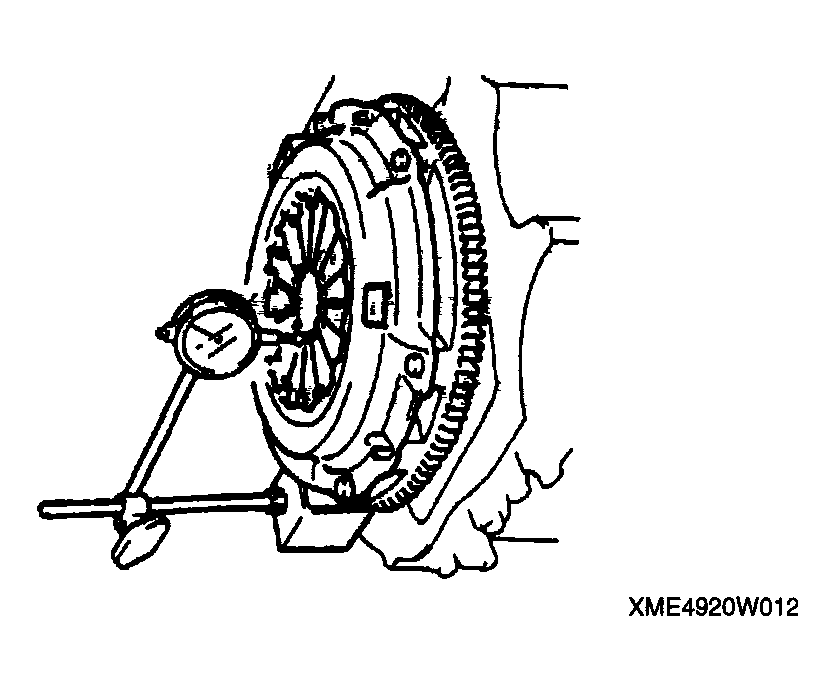

Fig 3: Checking Diaphragm Spring Fingers Alignment
Courtesy of MAZDA MOTORS CORP.
