Section 20 (Charging System (L3 With TC))
>>
Charging System Location Index [L3 With TC]
Charging System Location Index [L3 With TC]
WARNING:
This page is about a different variant/trim than selected.

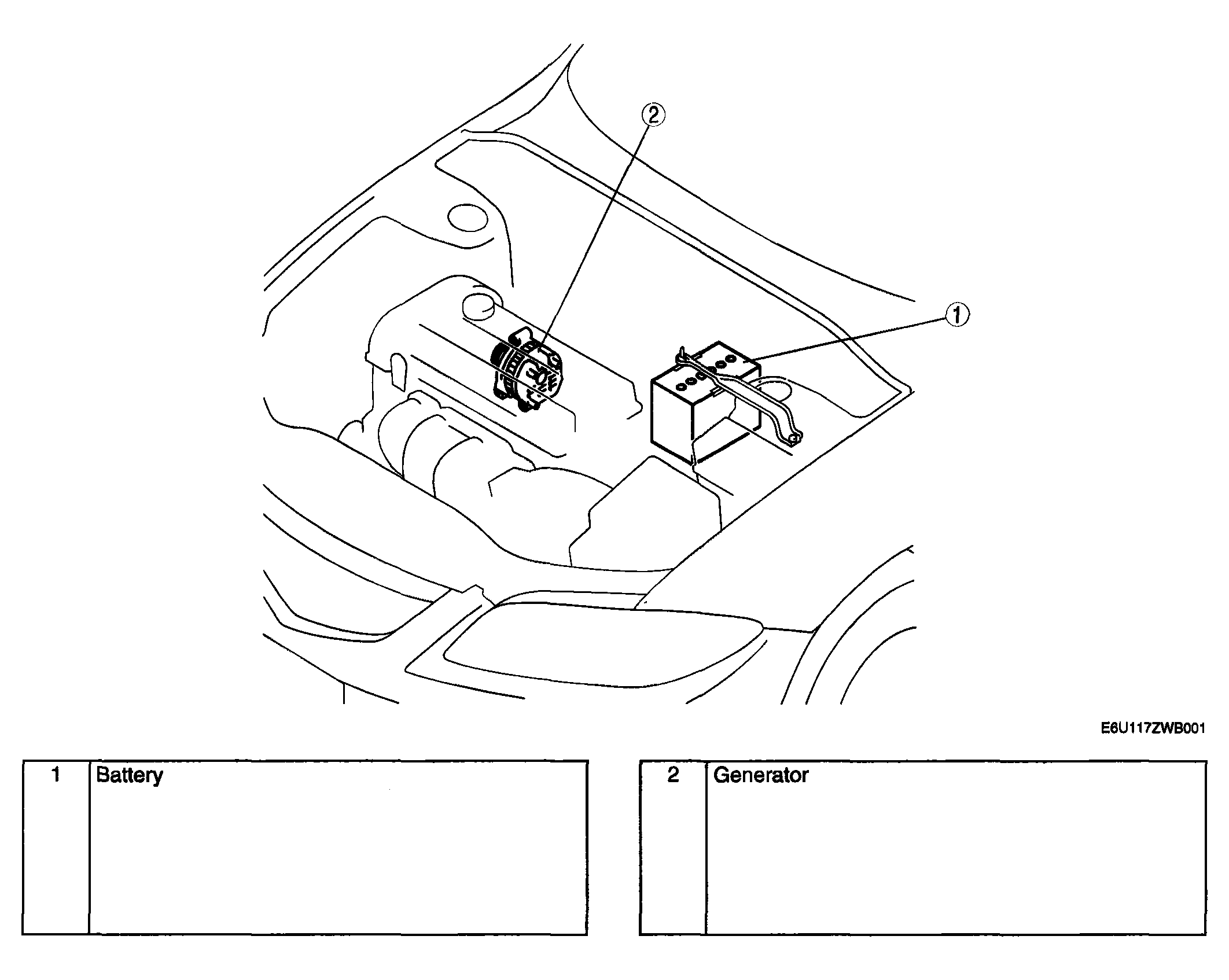

Fig 1: Locating Charging System Components
Courtesy of MAZDA MOTORS CORP.
