Section 2 (Symptom Troubleshooting [Engine Control System L3))
>>
Symptom Troubleshooting Wiring Diagram
>>
California Emission Regulation Applicable ATX Model
California Emission Regulation Applicable ATX Model
WARNING:
This page is about a different variant/trim than selected.

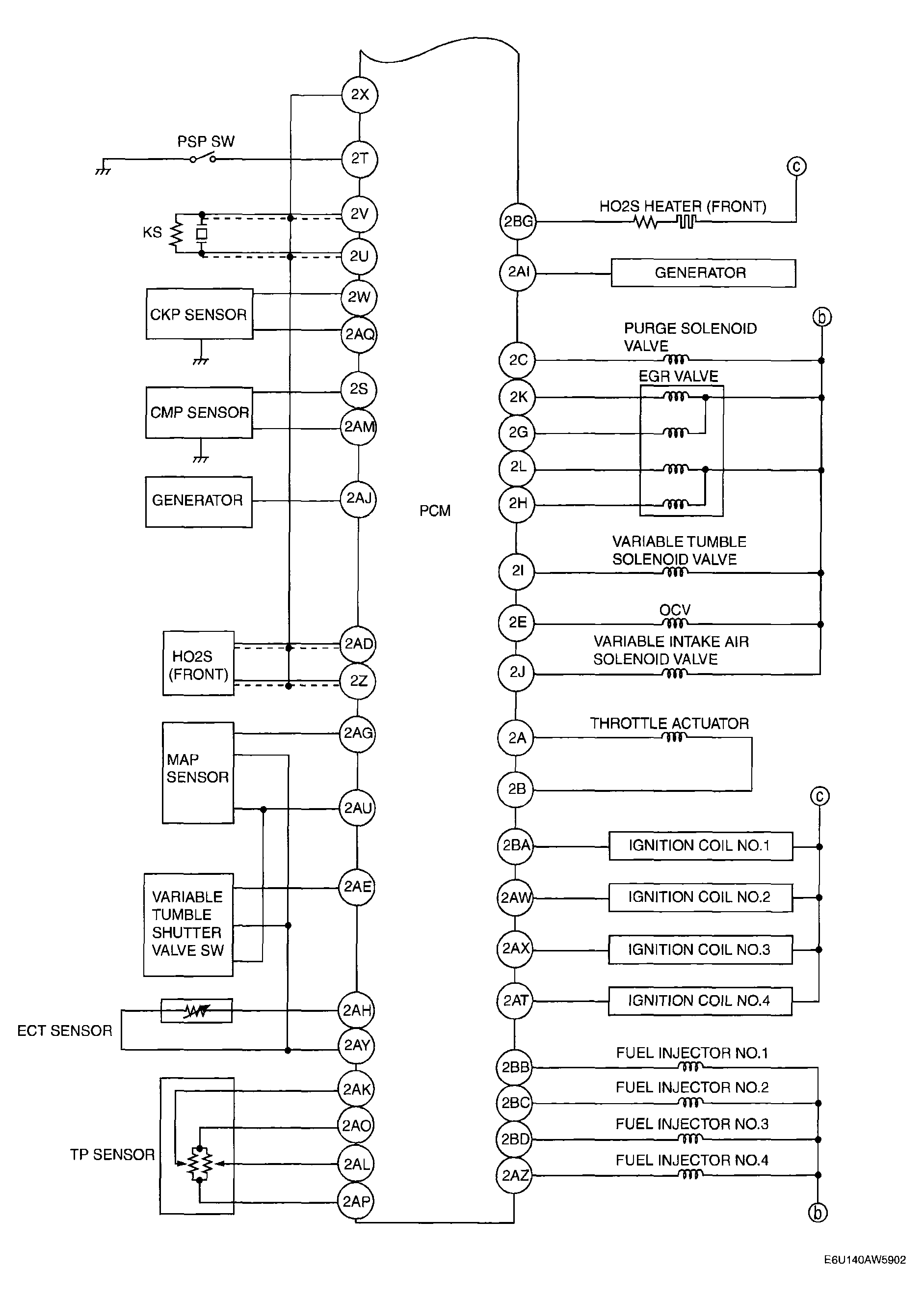

Fig 1: Symptom Troubleshooting Wiring Diagram (L3) - California Emission Regulation Applicable ATX Model (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

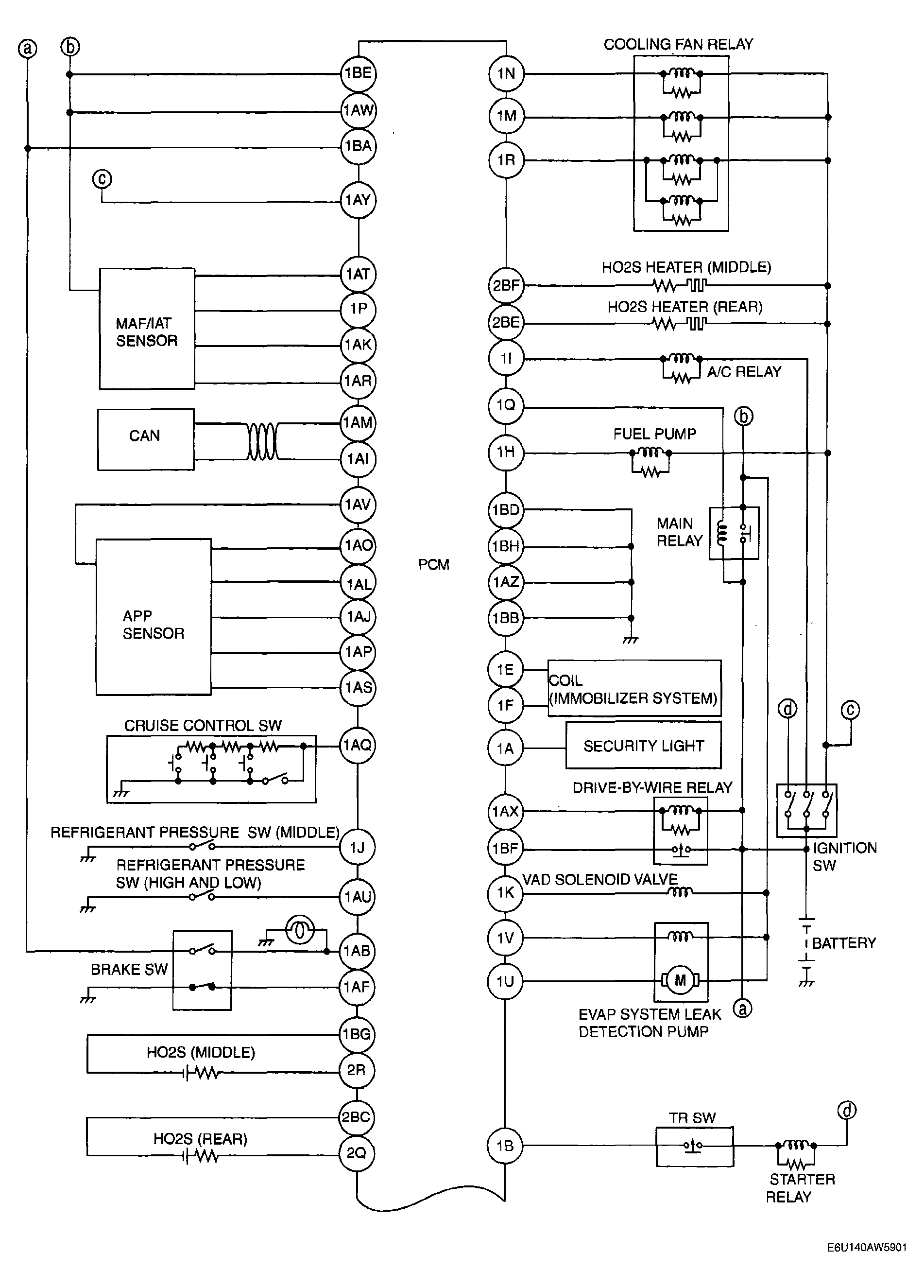

Fig 2: Symptom Troubleshooting Wiring Diagram (L3) - California Emission Regulation Applicable ATX Model (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
