No. 1 Melting Of Main Or Other Fuses

WARNING: This page is about a different variant/trim than selected.

FUSE REFERENCE

1	MELTING OF MAIN OR OTHER FUSES

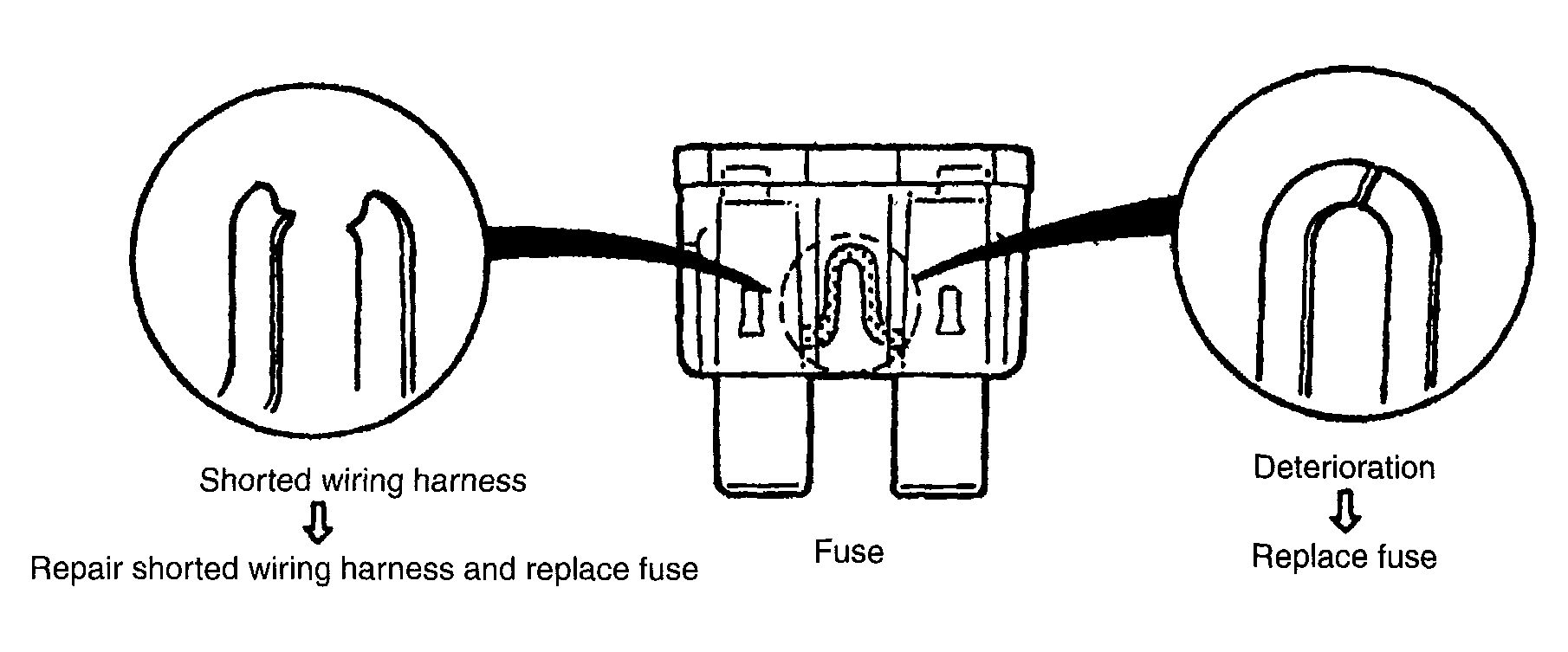

[TROUBLESHOOTING HINTS] Inspect condition of fuse.

DAMAGED FUSE REFERENCE

Damaged fuse

Related wiring harness

MAIN (100A)

MAIN fuse

IG KEY2 fuse
AD FAN fuse
FAN fuse
BTN fuse
Generator

ENG +B (10A)

ENG +B fuse

IG KEY1 (40A)

IG KEY1 fuse

Ignition switch
- ENGINE IG fuse
- METER IG fuse

IG KEY2 (30A)

IG KEY2 fuse

Ignition switch
Starter relay

ETC (7.5A)

ETC fuse

ETC relay
- PCM

AD FAN (30A)

AD FAN fuse

Cooling fan relay No.1
- Cooling fan motor No.1
- Cooling fan motor No.2

FAN (30A)

FAN fuse

Cooling fan relay No.2
- Cooling fan motor No.1
Cooling fan relay No.3
- Cooling fan motor No.2

ENGINE IG (15A)

ENGINE IG fuse

PCM
Ignition coil
Capacitor

METER IG (15A)

METER IG fuse

Cooling fan relay No.1
- PCM
Cooling fan relay No.2
- PCM
Cooling fan relay No.3
- PCM
Cooling fan relay No.4
- PCM
Heated oxygen sensor heater (front)⁽¹⁾
Heated oxygen sensor heater (rear)⁽¹⁾

ENG BAR (10A)

ENG BAR fuse

EGR valve
Purge solenoid valve
MAF/IAT sensor
Variable air duct control solenoid valve
OCV
Variable intake air system control solenoid valve
Variable tumble solenoid valve
EVAP system leak detection pump

ENG BAR2 (15A)⁽²⁾

ENG BAR2 fuse

Heated oxygen sensor heater (front)
Heated oxygen sensor heater (rear)

INJ (15A)

INJ fuse

PCM
Fuel pump relay
- PCM
- Check connector
Fuel injectors
ETC relay
- PCM

FUEL PUMP (15A)

FUEL PUMP fuse

Main relay
- PCM
Fuel pump relay
- Fuel pump

BTN (40A)

BTN fuse

ROOM fuse

ROOM (15A)

ROOM fuse

⁽¹⁾	California emission regulation applicable ATX model

⁽²⁾	Except for California emission regulation applicable ATX model
