Fuel Tank Side

WARNING: This page is about a different variant/trim than selected.
  1. Raise the rear of the Vehicle and support it with safety stands.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

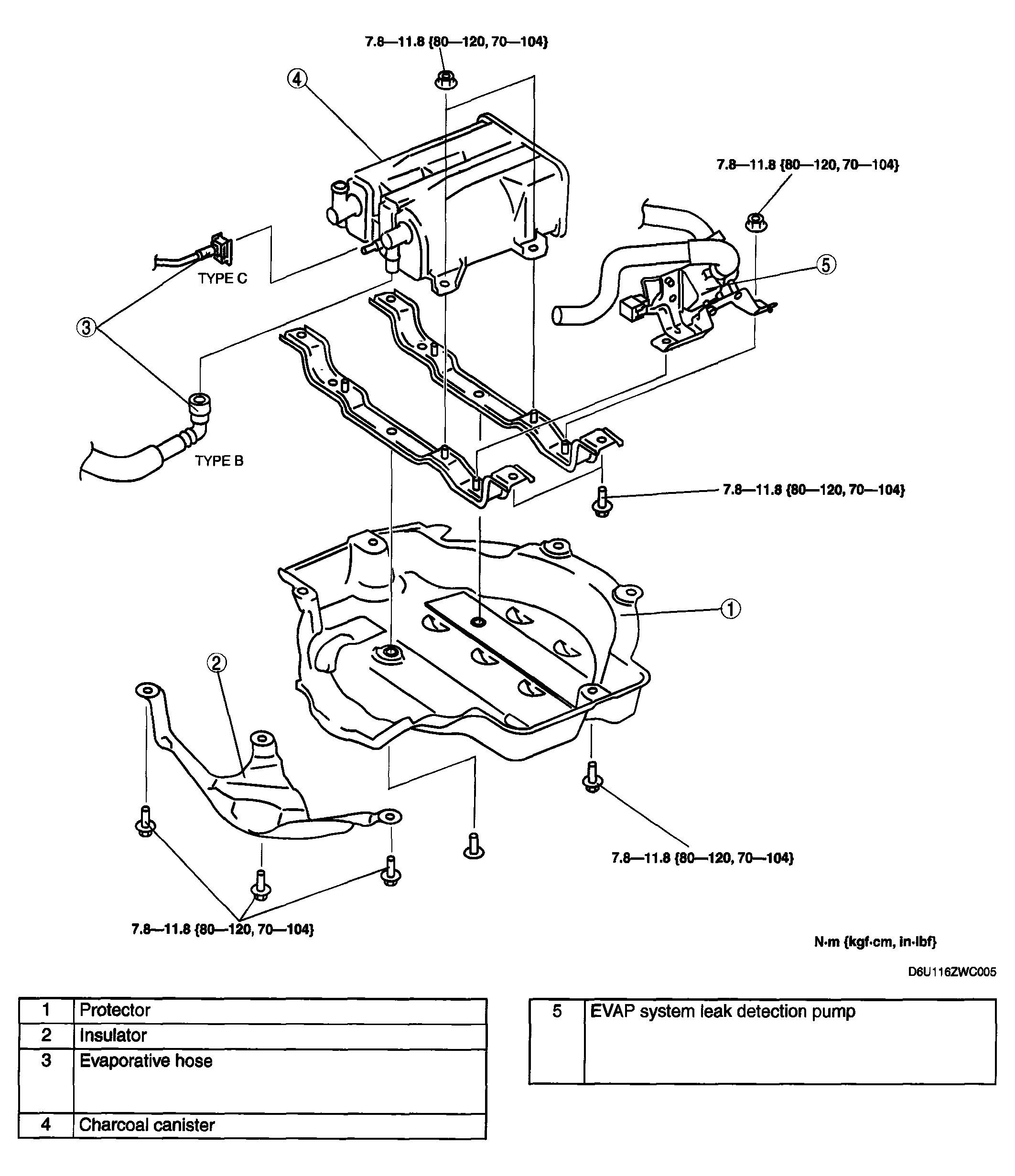

    Fig 1: Charcoal Canister, EVAP System Leak Detection Pump & Torque Specification
    G04324993Courtesy of MAZDA MOTORS CORP.
