EGR Valve Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Disconnect the EGR valve connector.
  3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

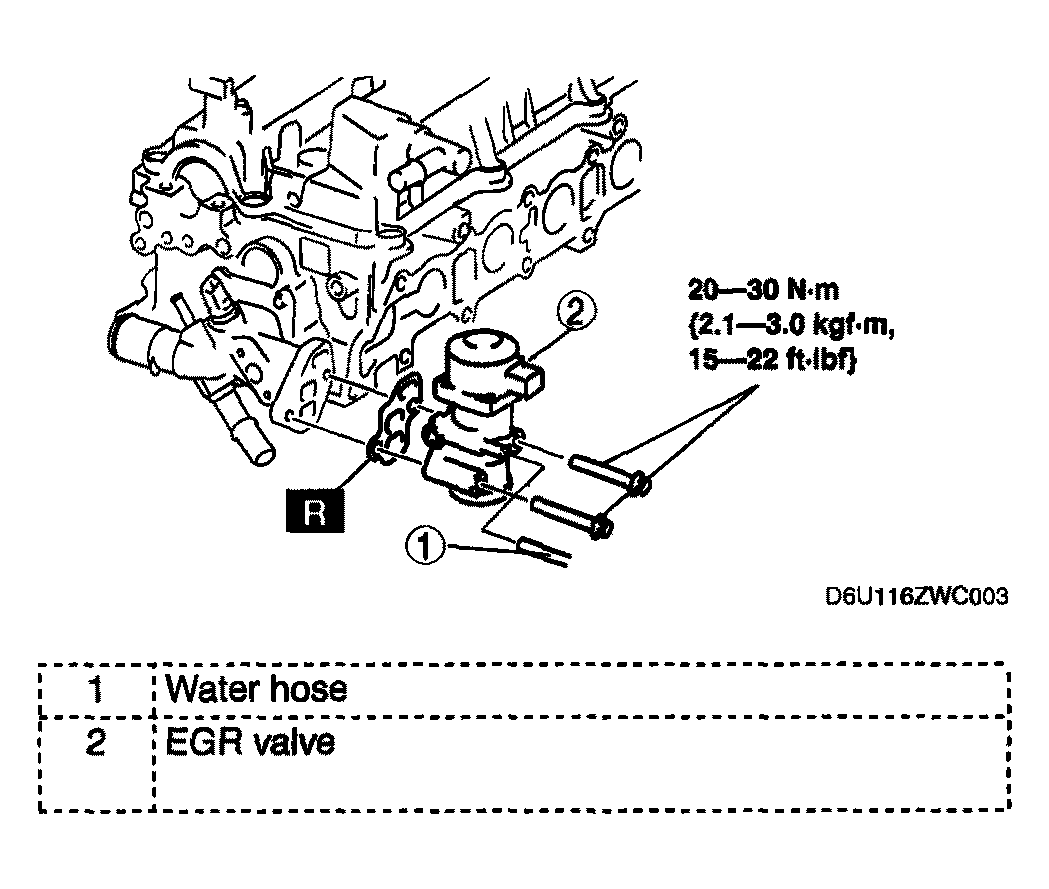

    Fig 1: EGR Valve & Torque Specification
    G04325008Courtesy of MAZDA MOTORS CORP.
