WASTEGATE Actuator Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- Disconnect the hose from the wastegate actuator.

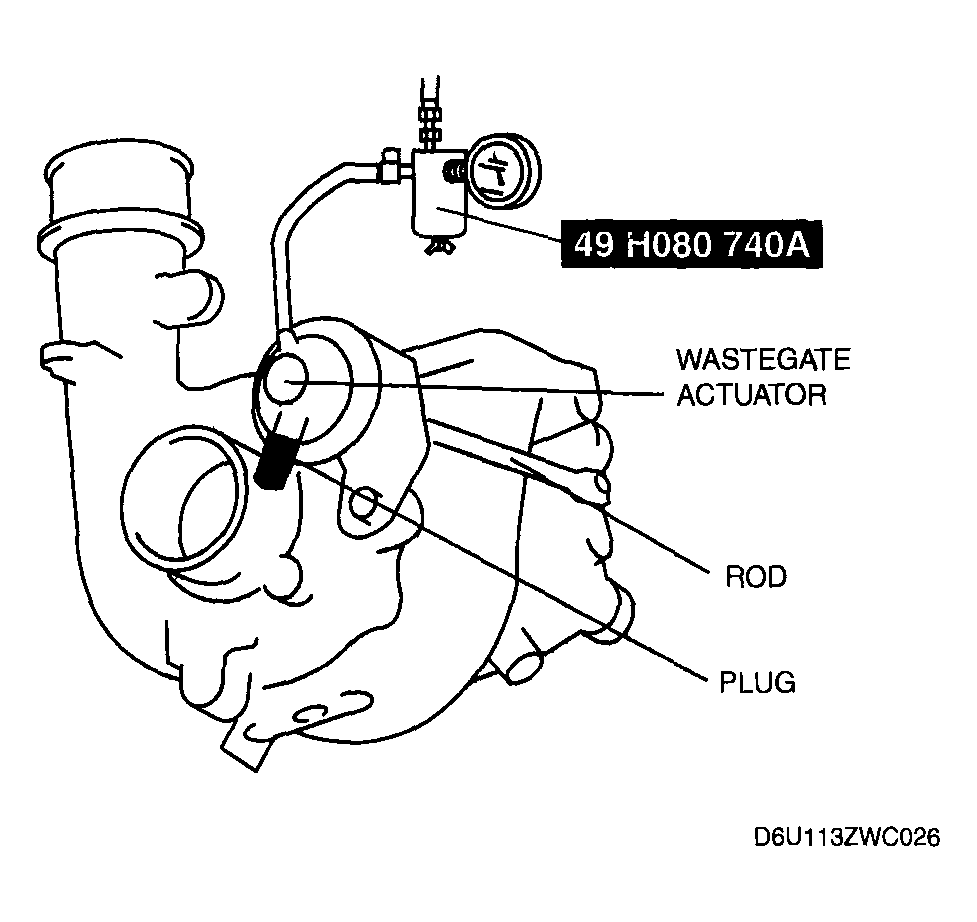

- Plug the wastegate actuator as shown in the figure.
- Connect the SST to the port.
- Raise the pressure slowly and take a measurement of the pressure when the rod stroke is 1.5 mm {0.06 in}.
- If the rod does not move, replace the turbocharger.

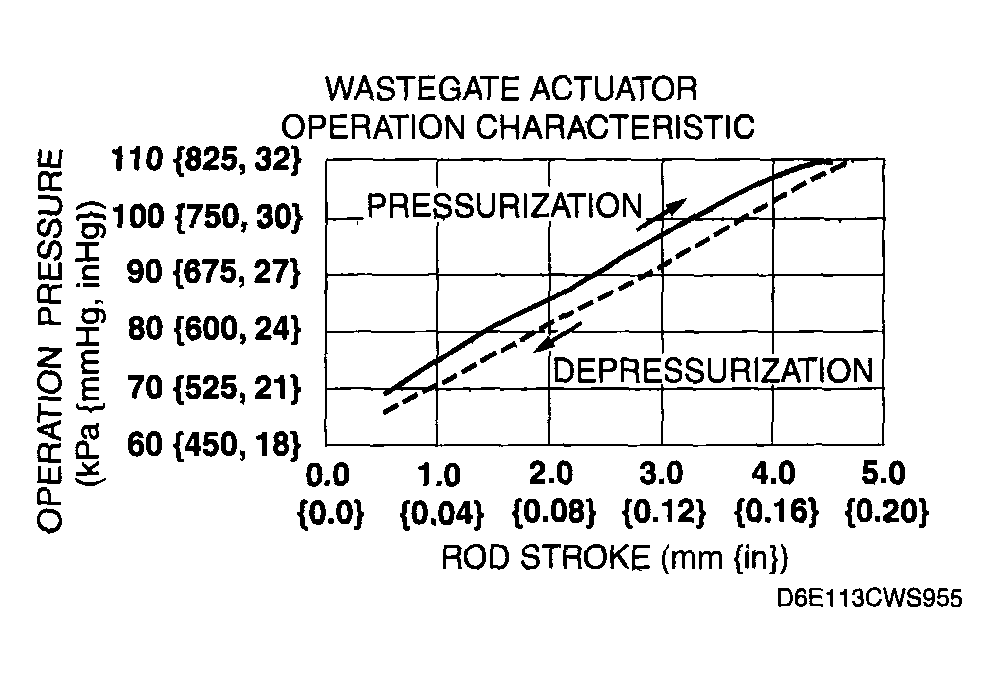

Specification (rod stroke: 1.5 mm {0.06 in})
78.0-83.4 kPa {586-625 mmHg, 23.1-24.6 inHg}
