Section 18 (Engine Mechanical [Intake-Air System L3 With TC))
>>
Vacuum Hose Routing Diagram
Vacuum Hose Routing Diagram
WARNING:
This page is about a different variant/trim than selected.

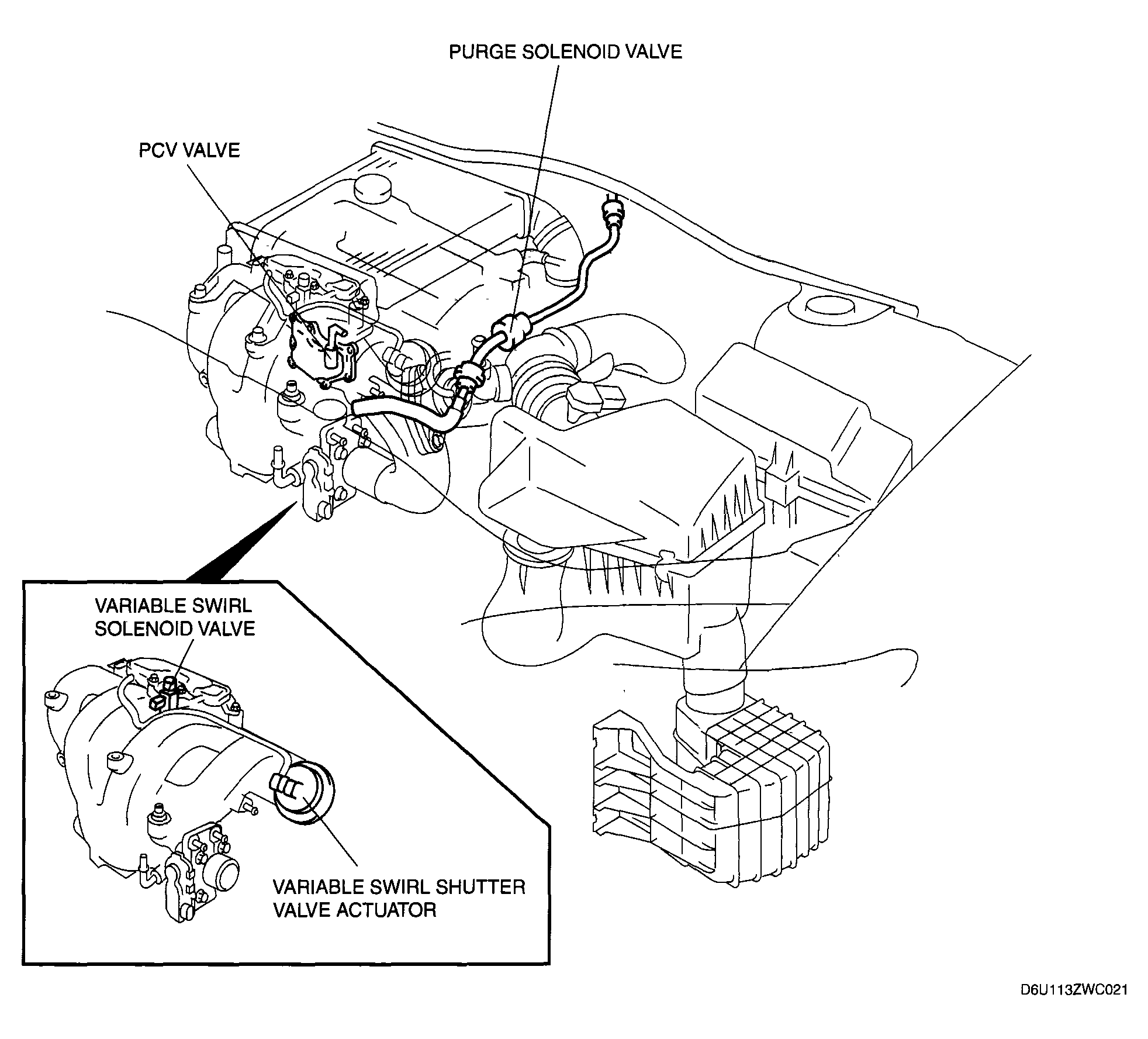

Fig 1: Vacuum Hose Routing Diagram [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
