Turbocharger Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the turbocharger.
Tightening torque

38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
Install the WU-TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
Install the front HO2S. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).

Fig 1: WU-TWC & Torque Specification
Courtesy of MAZDA MOTORS CORP.

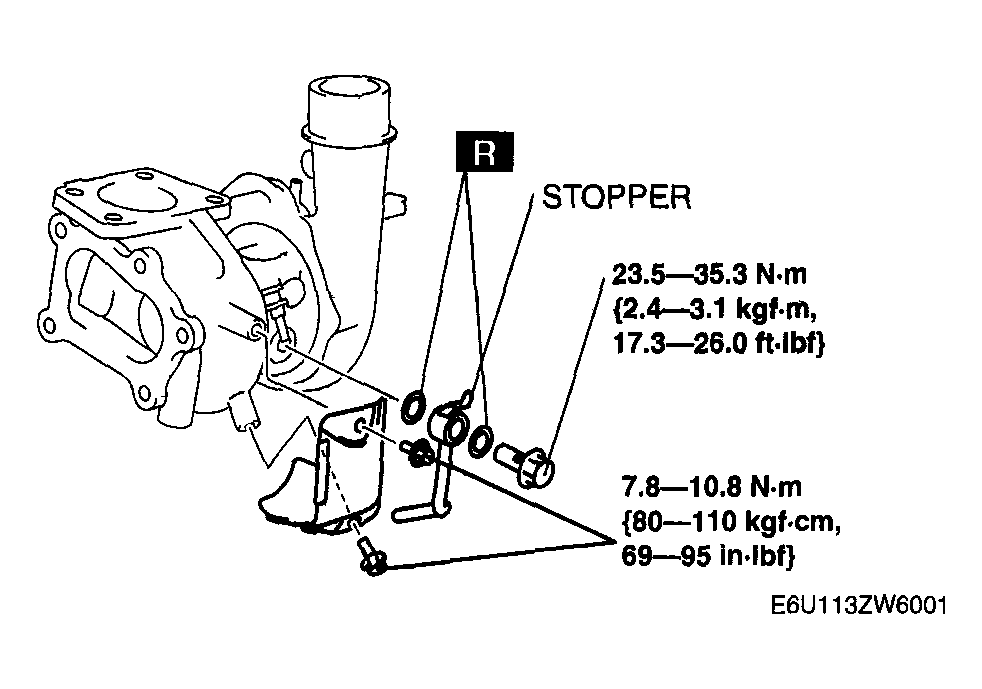

Tight the oil pipe installation bolt while the stopper of the oil pipe is faced to the turbocharger.

Fig 2: Oil Pipe Stopper Bolt & Torque Specification
Courtesy of MAZDA MOTORS CORP.

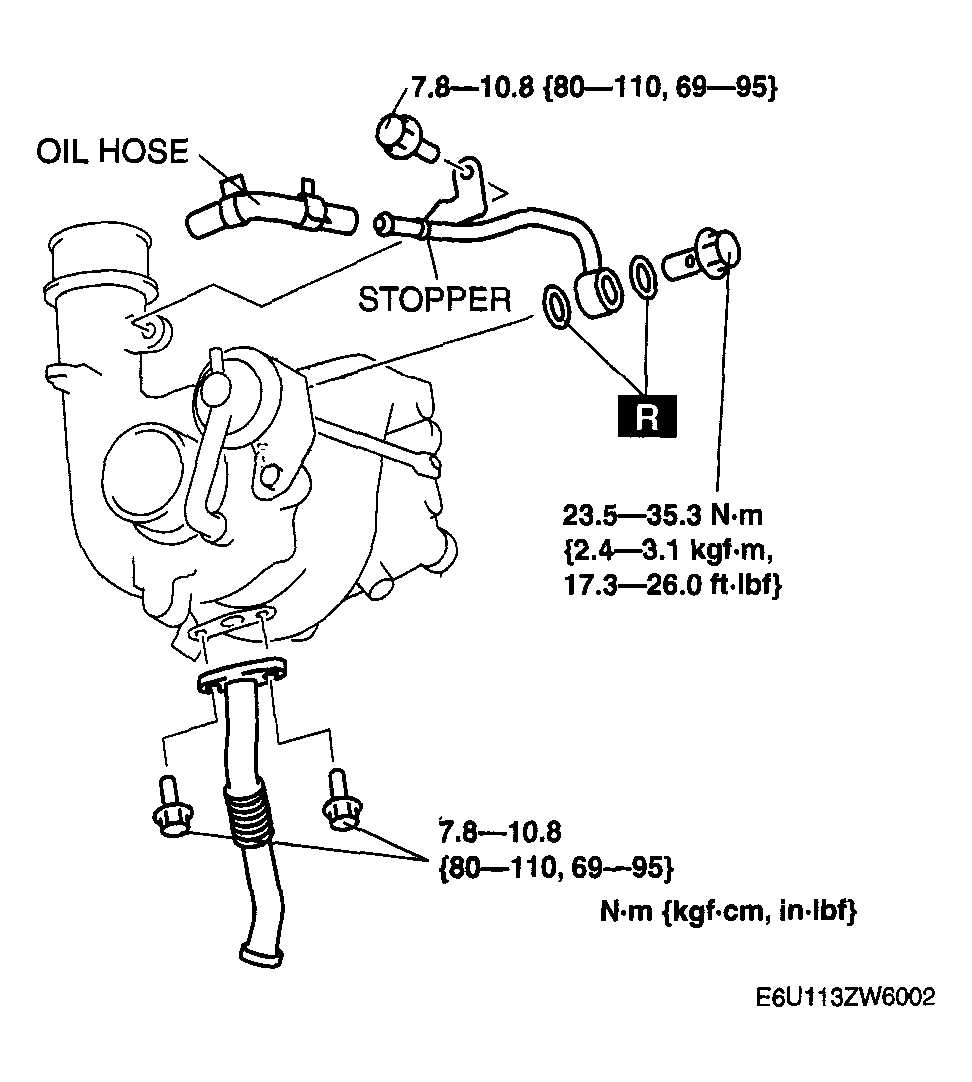

Install the oil pipes and, insert the oil hose until it reaches the stopper.

Fig 3: Turbocharger Oil Pipes/Hoses & Torque Specification
Courtesy of MAZDA MOTORS CORP.
