Intake Manifold Installation Note
WARNING: This page is about a different variant/trim than selected.
- Install the intake manifold.
Tightening torque
17-23 N.m {1.8-2.3 kgf.m, 13-16 ft.lbf}
- Install the vacuum hose.
- Install the drive belt.
- Install the oil level gauge pipe. (See OIL PAN REMOVAL/INSTALLATION ).

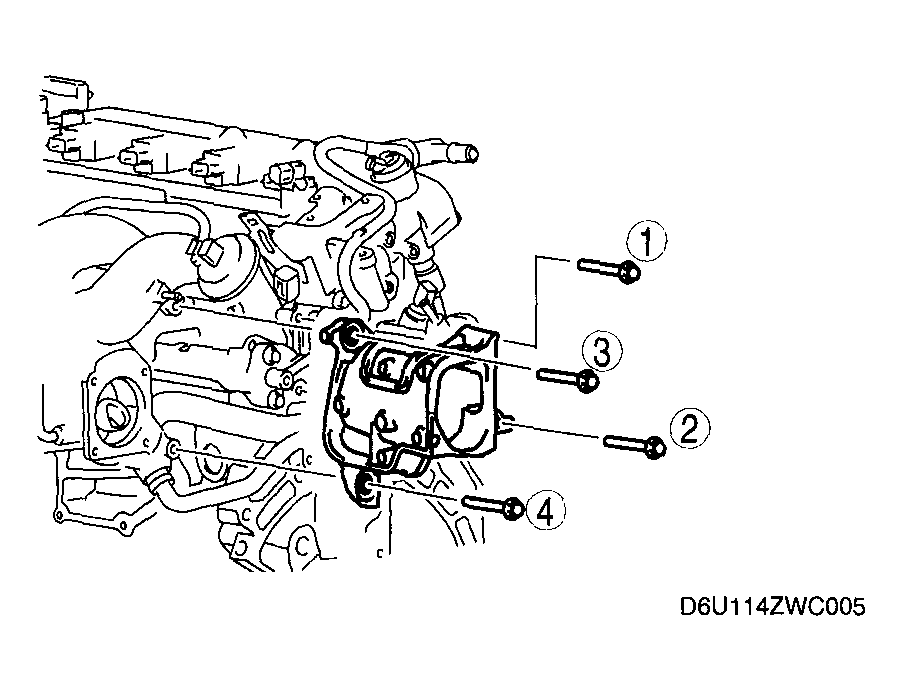

- Install the fuel delivery pipe cover in the order in the figure.
Tightening torque
17-23 N.m {1.8-2.3 kgf.m, 13-16 ft.lbf}
- Install the high pressure fuel pump bracket and the EGR pipe bracket.
