Charge Air Cooler Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the duct.

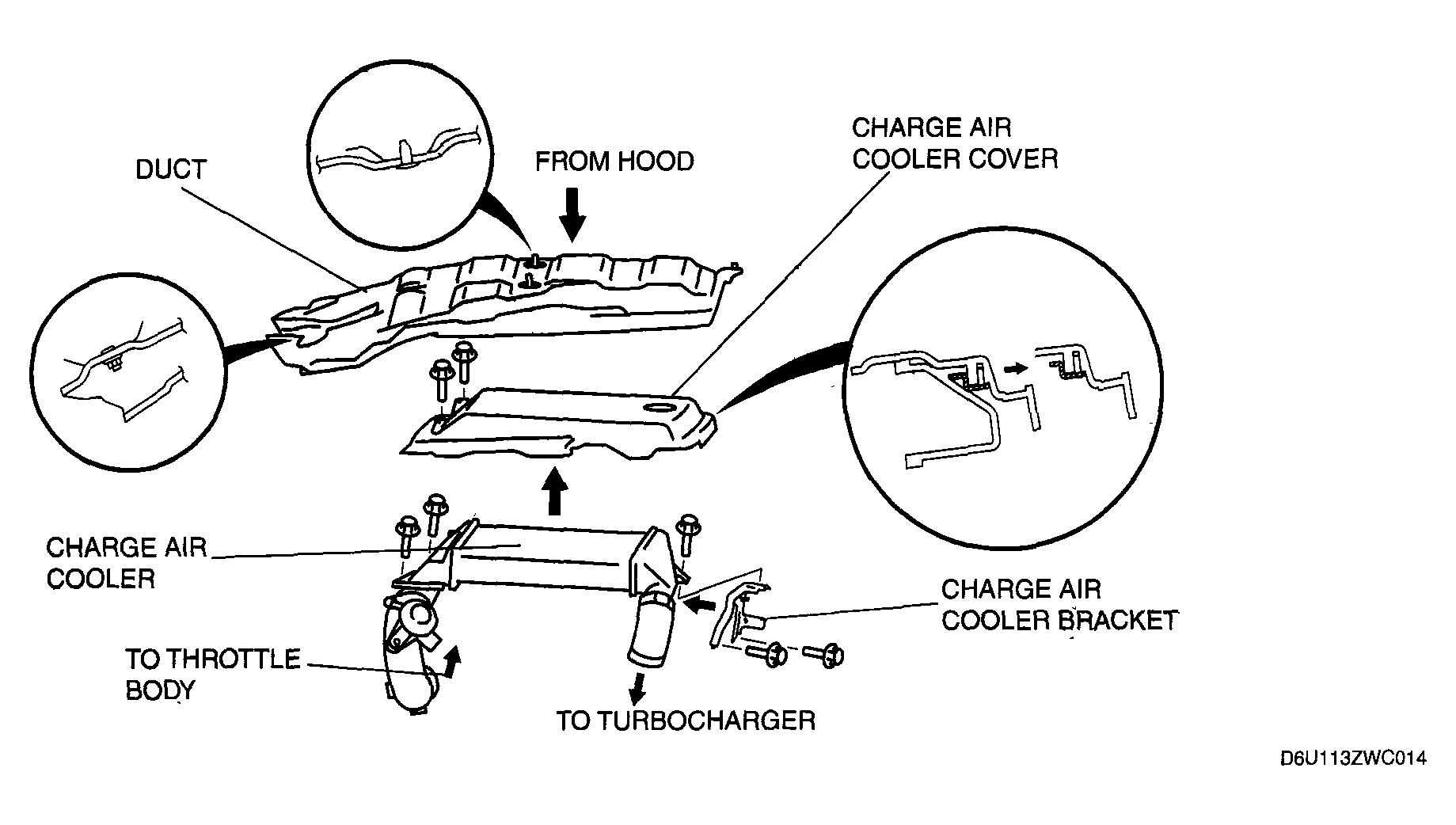

    Fig 1: Removing Charge Air Cooler Cover
    G04324729Courtesy of MAZDA MOTORS CORP.
  2. Remove the charge air cooler cover.
  3. Remove the charge air cooler.
  4. Remove the charge air cooler bracket.
