Section 18 (Engine Mechanical [Intake-Air System L3 With TC))
>>
Intake Air System Location Index
Intake Air System Location Index
WARNING:
This page is about a different variant/trim than selected.

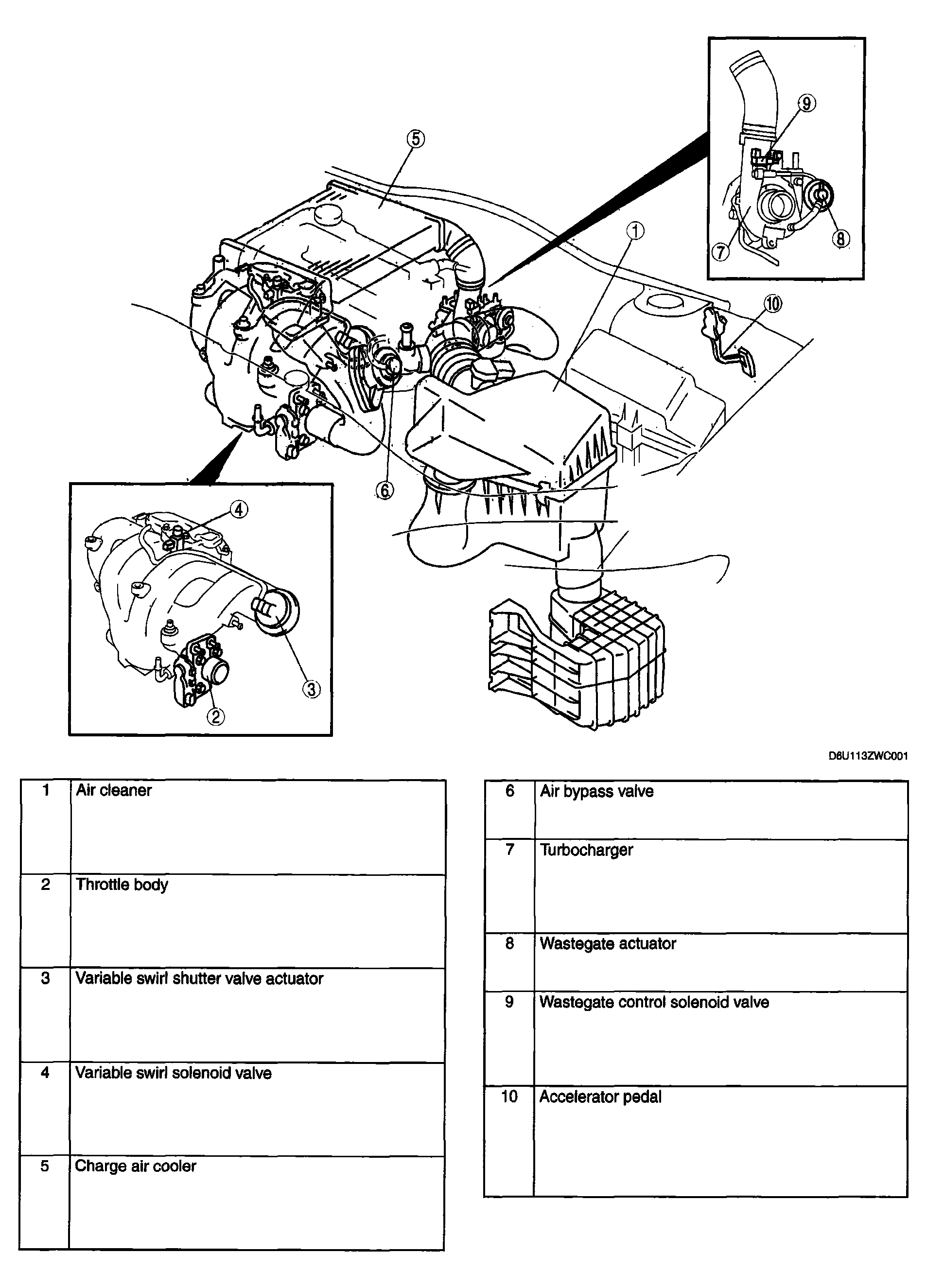

Fig 1: Locating Intake Air System Components
Courtesy of MAZDA MOTORS CORP.
