Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

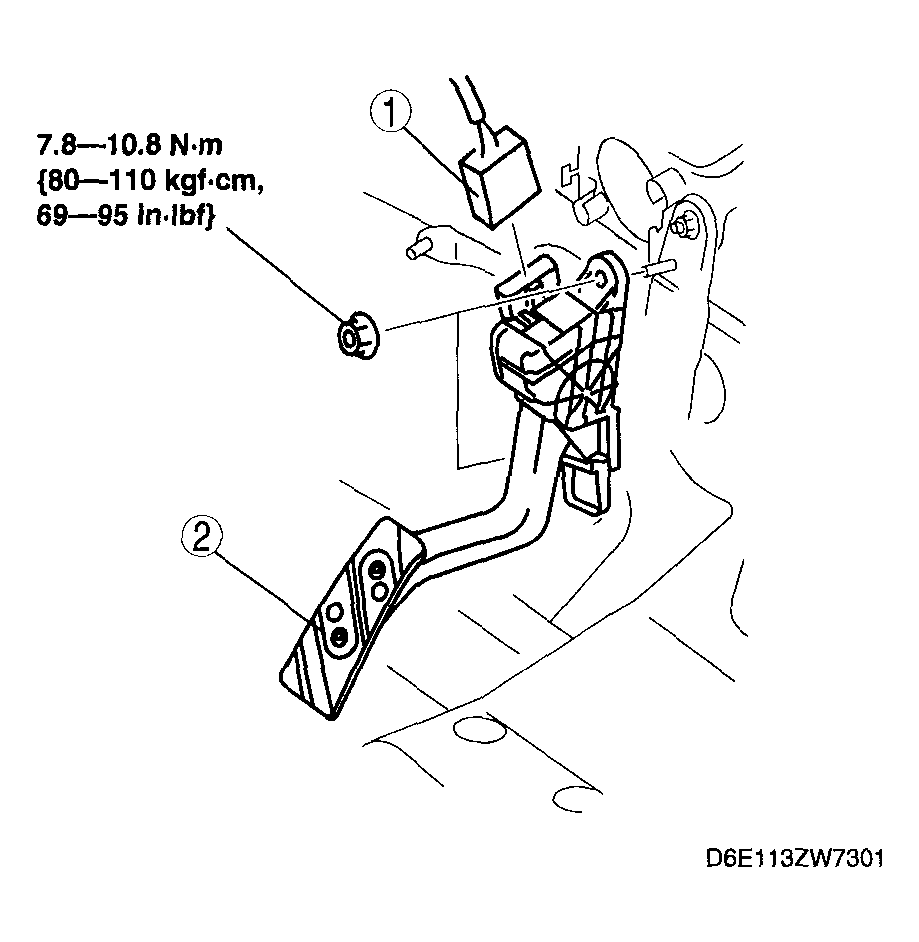

    Fig 1: Accelerator Pedal Assembly & Torque Specification
    G04324756Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
