Fuel Shut-Off/Rollover Valve Inspection

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it Is free of foreign material.
NOTE:
  • This inspection is for fuel shut-off valve and two rollover valves integrated in the fuel tank.
  1. Disconnect the plastic fuel hose and the fuel pump unit connector. See FUEL PUMP UNIT REMOVAL/INSTALLATION .
  2. Remove the fuel tank with the fuel pump unit. See FUEL TANK REMOVAL/INSTALLATION .
  3. Plug the port as shown in the figure.
  4. Level the fuel tank.

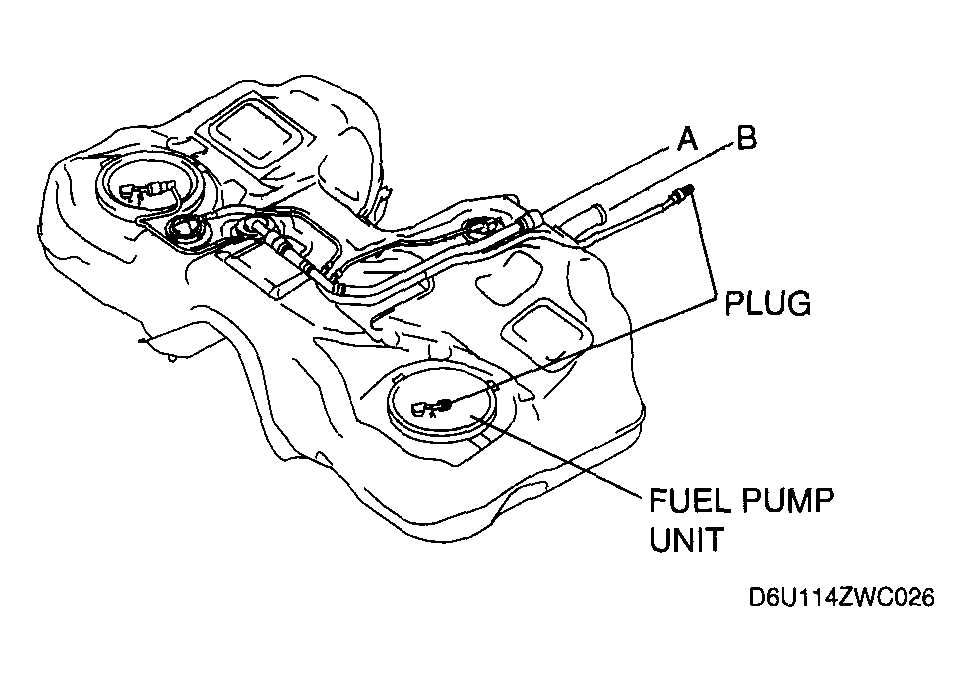

    Fig 1: Plugging Port
    G04324858Courtesy of MAZDA MOTORS CORP.
  5. Blow through port B and verify that there is airflow from port A.
    • If there is no airflow, replace the fuel tank.
    • If there is airflow, turn the fuel tank upside down, and proceed to Step 6.
  6. Blow through port B and verify that there is no airflow from port A.
    • If there is airflow, replace the fuel tank.

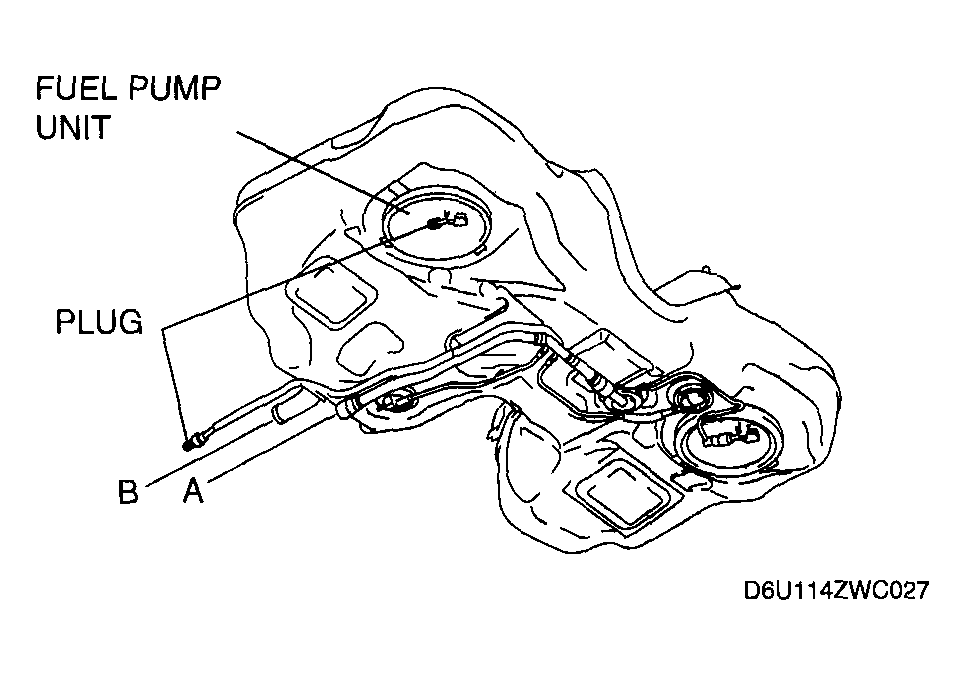

      Fig 2: Identifying Port A And B
      G04324859Courtesy of MAZDA MOTORS CORP.
