Exhaust System Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • A hot engine and exhaust system can cause severe bums. Turn off the engine and wait until they are cool before removing the exhaust system.
  1. Remove the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

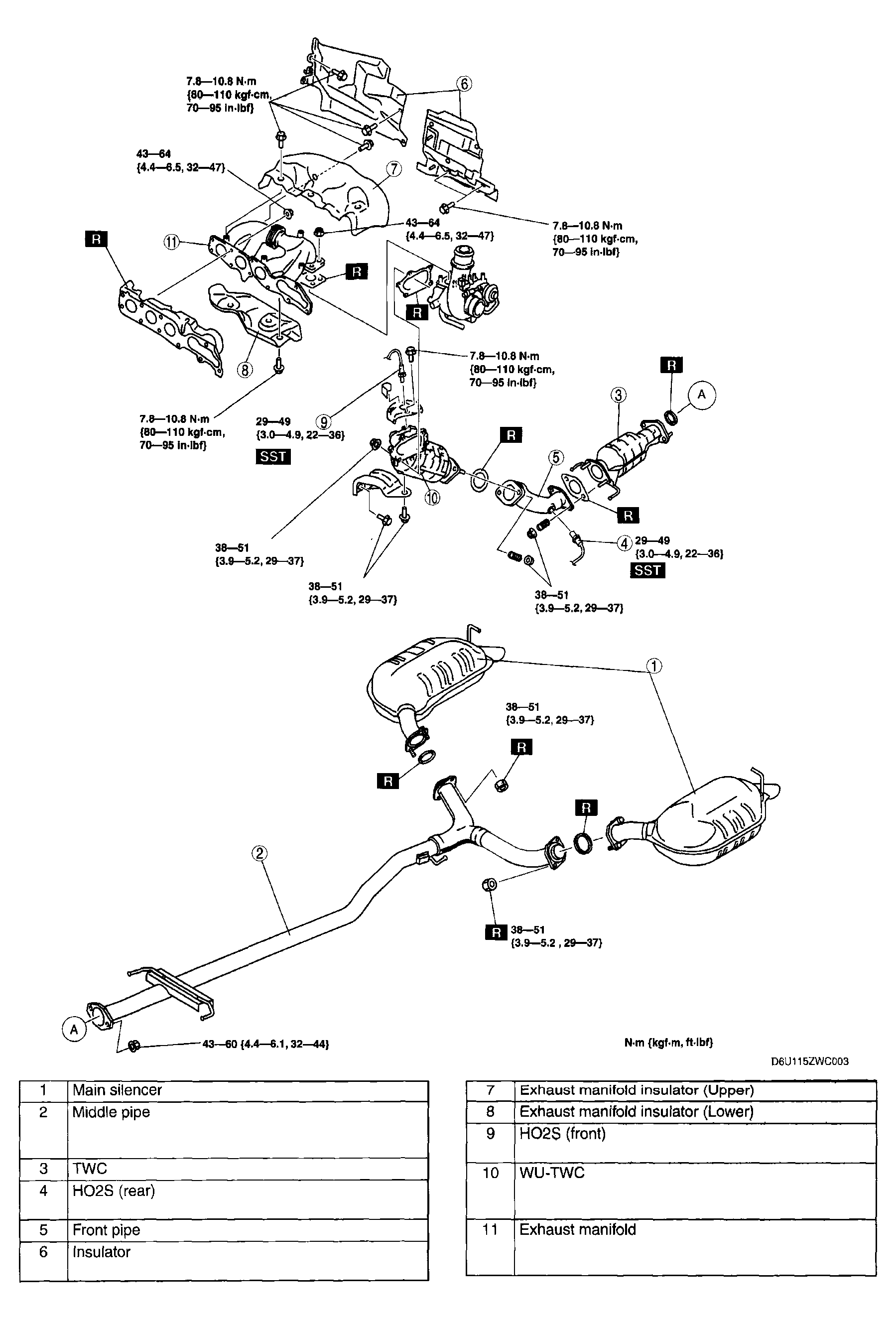

    Fig 1: Exploded View Of Exhaust System & Torque Specification (4.3L)
    G04324919Courtesy of MAZDA MOTORS CORP.
