HO2S Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the insulator (WU-TWC top side). (Front HO2S)
  2. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  3. Remove the HO2S using the SST  before removing the exhaust manifold.

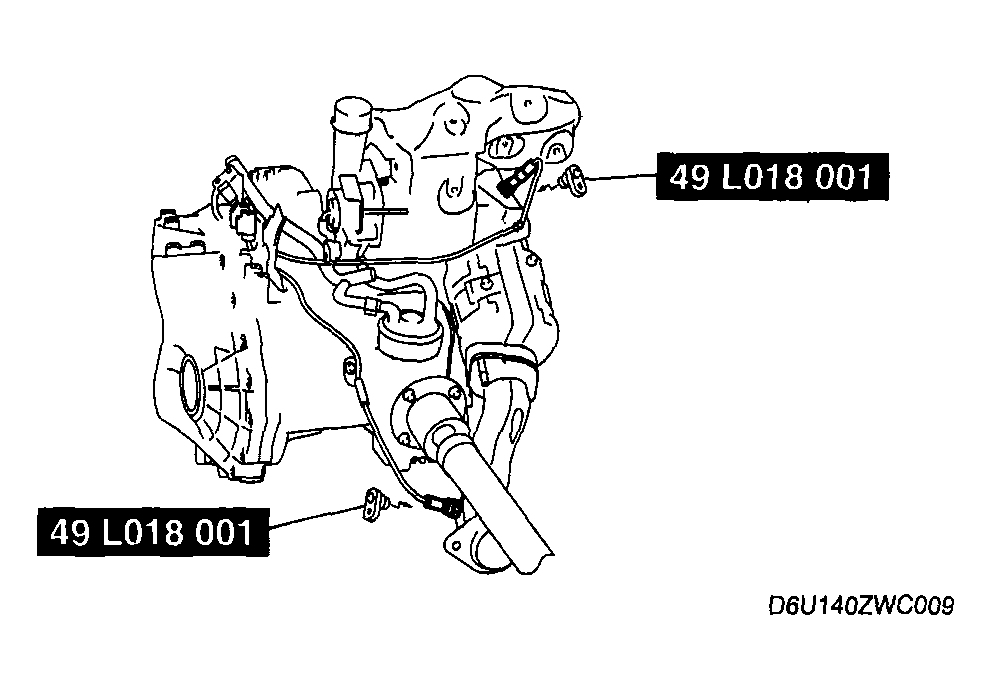

    Fig 1: Removing HO2S Using SST
    G04324920Courtesy of MAZDA MOTORS CORP.
