Exhaust Manifold Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Tighten the exhaust manifold installation nuts in the order shown.

    Tightening torque

    43-64 N.m {4.4-6.5 kgf.m, 32-47 ft.lbf}

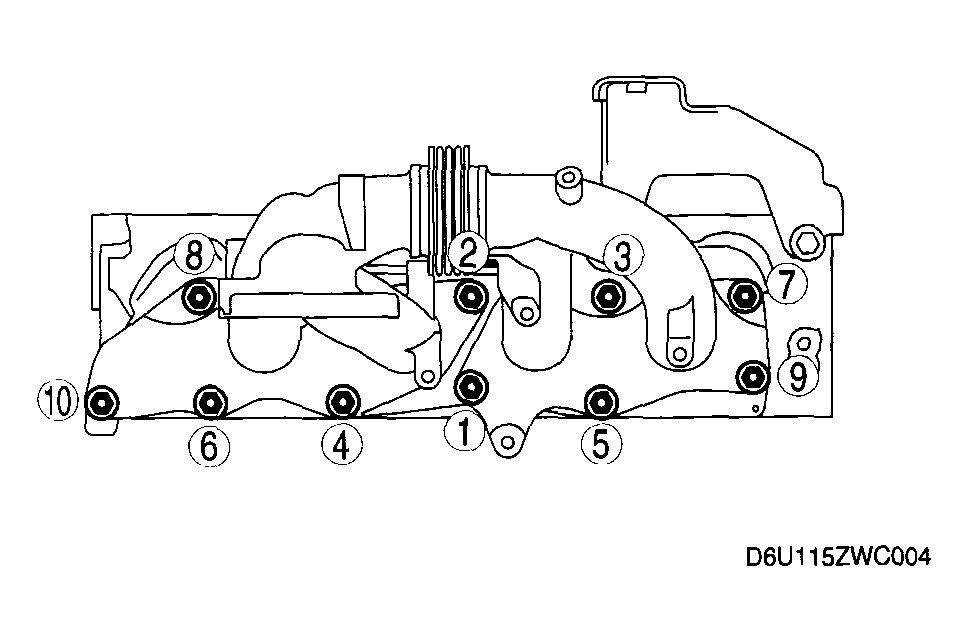

    Fig 1: Exhaust Manifold Tightening Sequence
    G04324921Courtesy of MAZDA MOTORS CORP.
