Oil Pump Sprocket Removal/Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SST  to the oil pump sprocket to stop the oil pump from rotating.

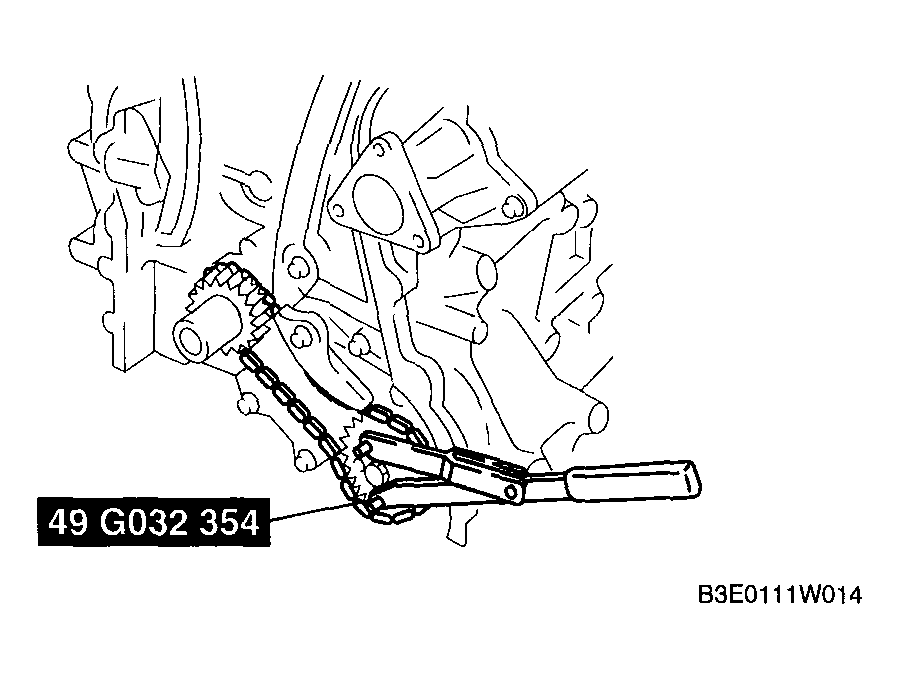

    Fig 1: Installing SST To Oil Pump Sprocket
    G04324658Courtesy of MAZDA MOTORS CORP.
