Timing Chain Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SST  to the camshaft as>shown in the figure.
  2. Install the timing chain.
  3. Remove the wire or paper clip from the chain tensioner piston and apply tension to the timing chain.

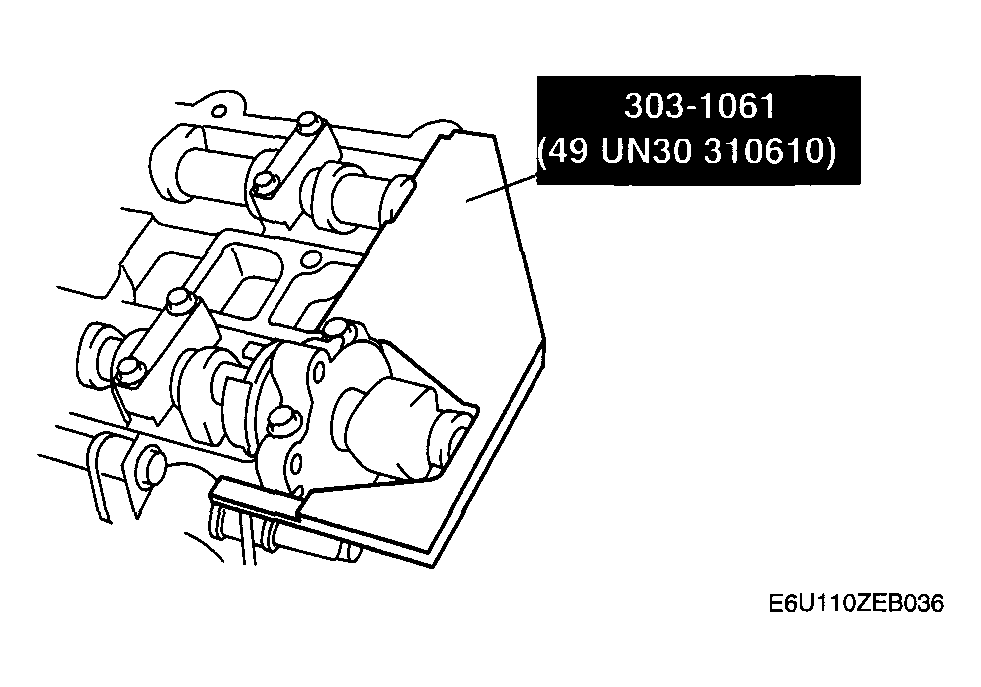

    Fig 1: Installing SST To Camshaft
    G04324420Courtesy of MAZDA MOTORS CORP.
