Oil Pump Driven Sprocket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SST  to the oil pump driven sprocket and lock the oil pump against rotation.

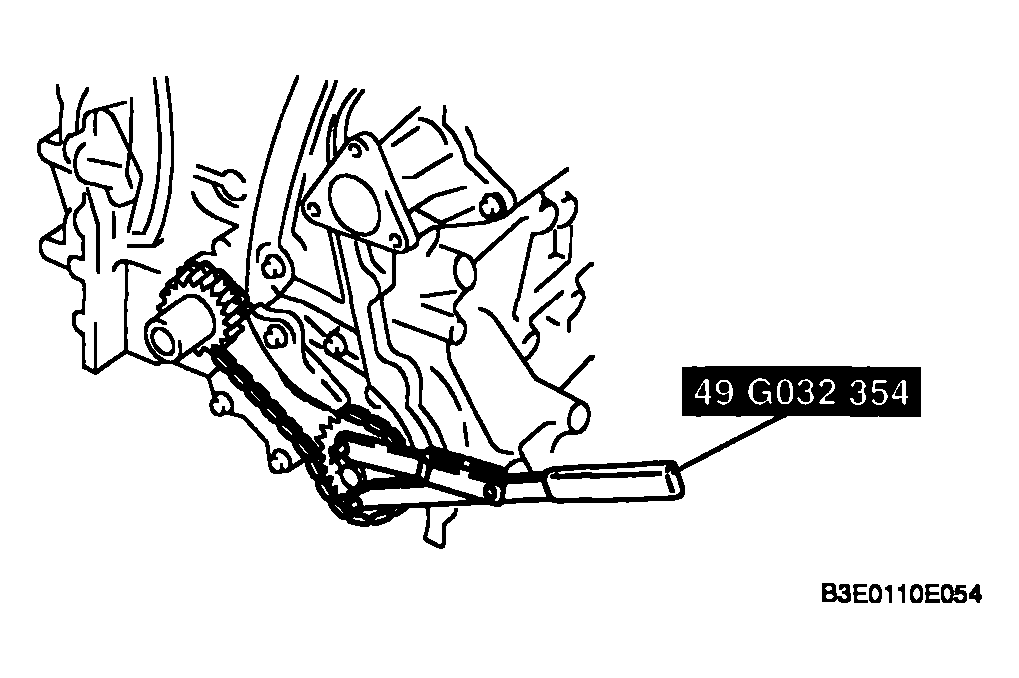

    Fig 1: Holding Oil Pump Sprocket Using SST
    G04313497Courtesy of MAZDA MOTORS CORP.
