Oil Pump Drive Sprocket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. The oil pump drive sprocket has the assembly direction as shown in the figure.

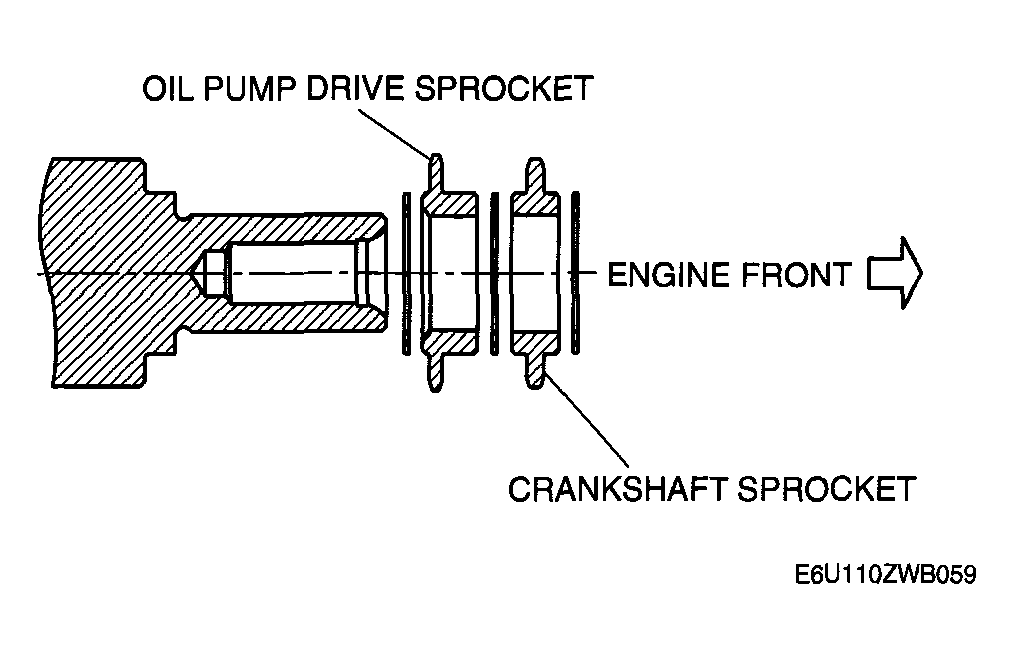

    Fig 1: Installing Oil Pump Drive Sprocket
    G04324418Courtesy of MAZDA MOTORS CORP.
