No. 3 Engine Mount Rubber, No. 3 Engine Joint Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Tighten the No. 3 engine mount bracket stud bolts.

    Tightening torque

    7.0-13 N.m {71.4-132.5 kgf-cm, 62.0-115.0 in.lbf}

  2. Temporarily tighten the No. 3 engine mount rubber installation bolts.

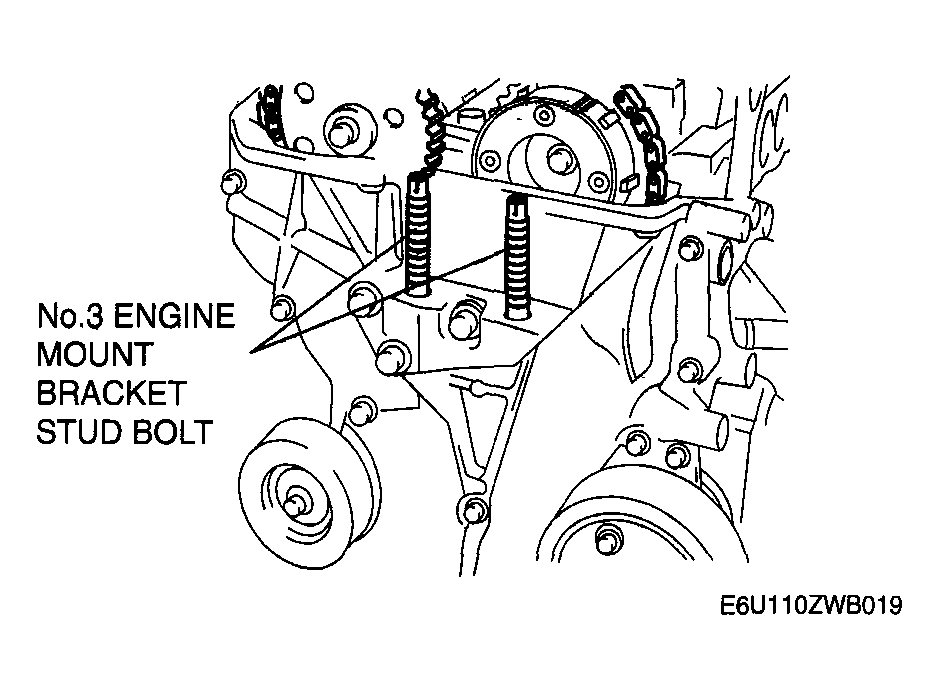

    Fig 1: Tightening No. 3 Engine Mount Bracket Stud Bolts
    G04324425Courtesy of MAZDA MOTORS CORP.
  3. Install the No. 3 engine joint bracket and tighten the bolts and nuts in the order shown in the figure.
    Fig 2: Tightening Sequence Of No. 3 Engine Joint Bracket Bolts And Nuts
    G04324426Courtesy of MAZDA MOTORS CORP.
