Engine Front Cover Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Apply silicone sealant to the engine front cover.
    CAUTION:
    • Install the engine front cover within 10 min of applying the silicone sealant.
    • Silicone sealant is not needed in area C shown in the figure.

    Thickness

    A: 2.2-3.2 mm {0.086-0.126 in}

    B: 1.5-2.5 mm {0.059-0.098 in}

    Fig 1: Applying Silicone Sealant To Engine Front Cover
    G04324423Courtesy of MAZDA MOTORS CORP.
  2. Tighten the engine front cover installation bolts in the order shown in the figure.

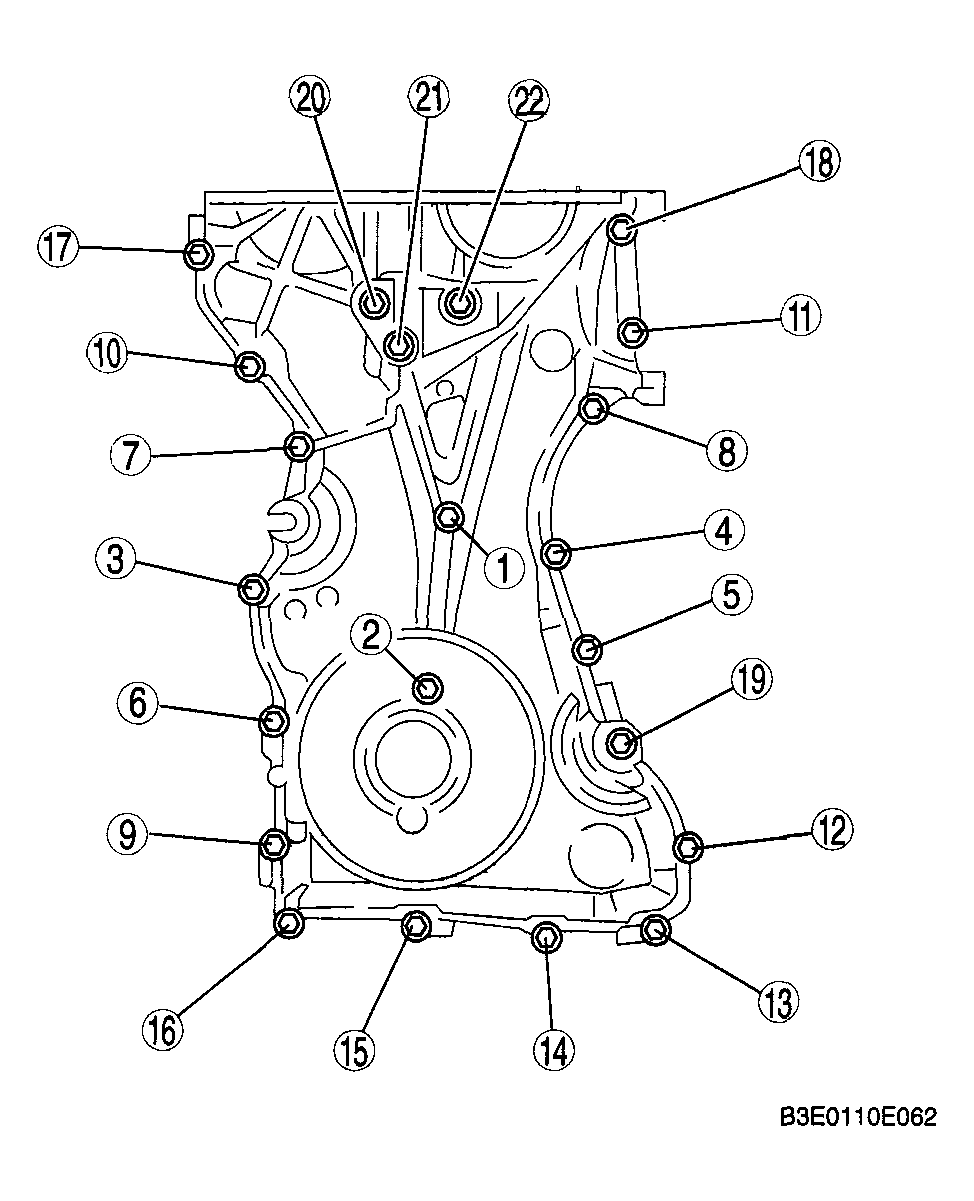

    Fig 2: Installing Sequence Of Engine Front Cover Installation Bolts
    G04324424Courtesy of MAZDA MOTORS CORP.
    ENGINE FRONT COVER TORQUE SPECIFICATION

    Installation Position Tightening Torque N.m {kgf.m, ft.lbf}
    1-18 8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}
    19-22 40-55 {4.1-5.6, 29.7-40.5}
