Cylinder Head Cover Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the cylinder head cover bolts in the order shown in the figure.

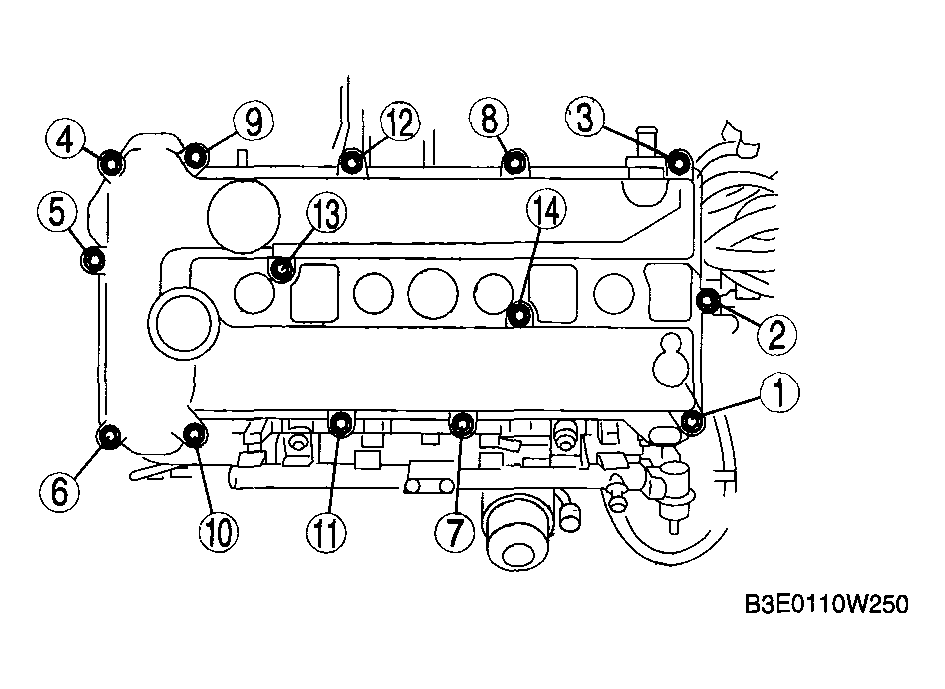

    Fig 1: Identifying Loosening Sequence Of Cylinder Head Cover Bolts
    G04324405Courtesy of MAZDA MOTORS CORP.
