Cylinder Head Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

Apply silicone sealant to the areas shown in the figure.

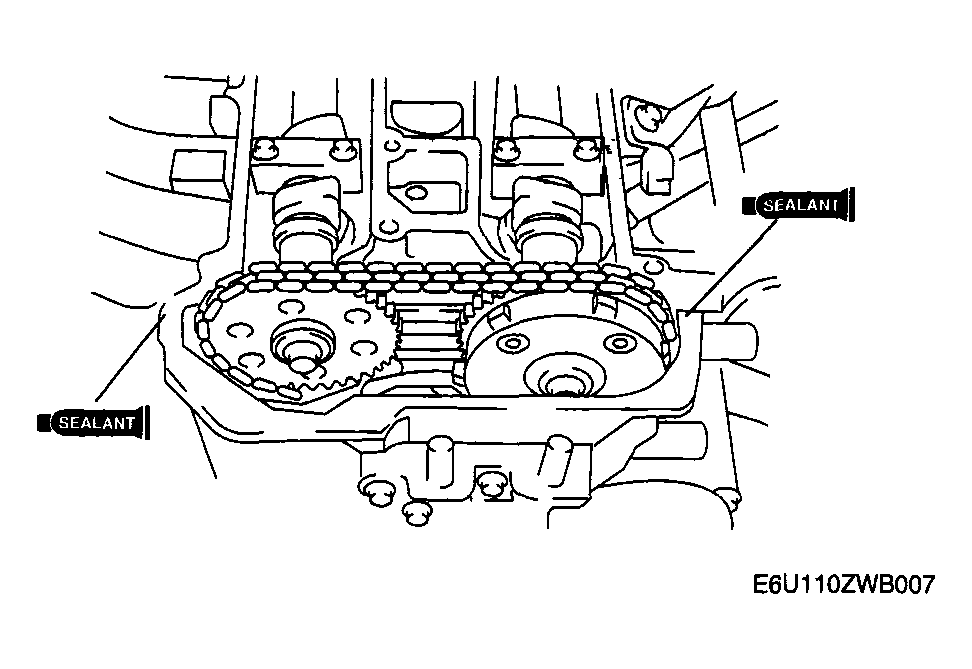

Fig 1: Applying Silicone Sealant To Cylinder Head Cover (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Thickness 5.0 mm {0.196 in}

Fig 2: Applying Silicone Sealant To Cylinder Head Cover (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Tighten the cylinder head cover bolts in the order shown in the figure.
Tightening torque

8.0-10.5 N.m {81.6-107.1 kgf.cm, 70.8-92.9 in.lbf}

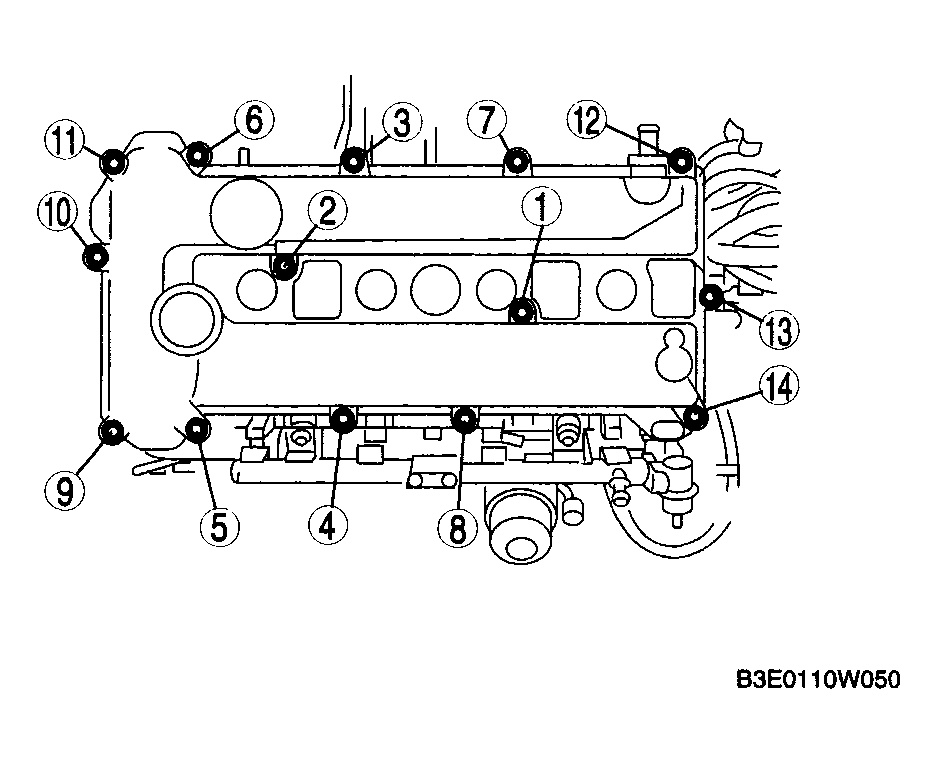

Fig 3: Cylinder Head Cover Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
