Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder block lower blind plug and install the SST  .
  2. Rotate the crankshaft clockwise so that the No. 1 cylinder is at TDC of the compression stroke. (Position crank weight contacts SST  ).

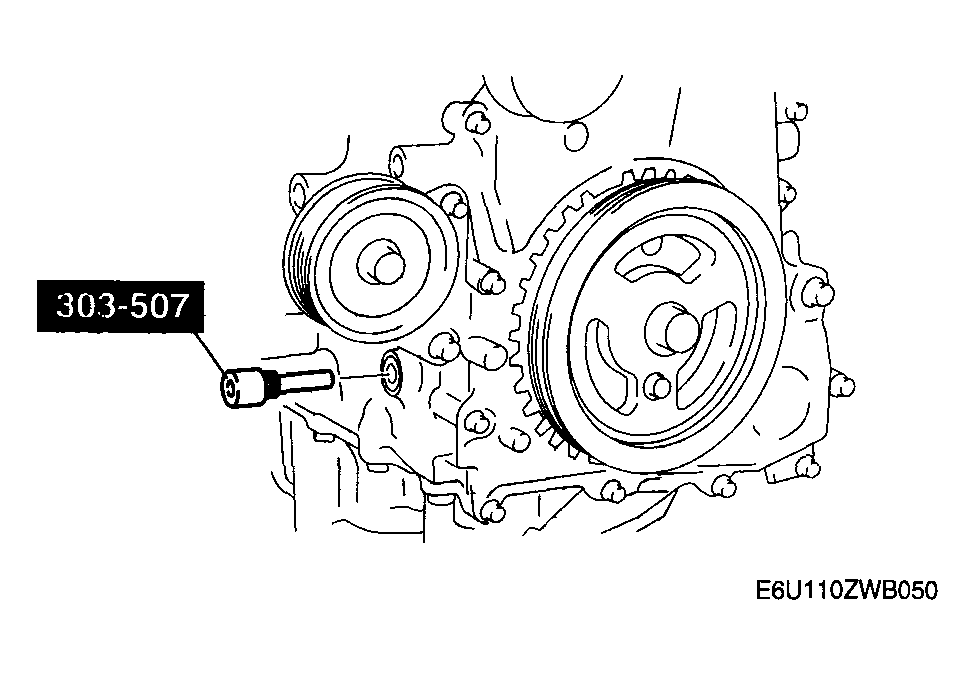

    Fig 1: Installing SST
    G04324406Courtesy of MAZDA MOTORS CORP.
  3. Install the SST  to the crankshaft pulley and lock the crankshaft against rotation.

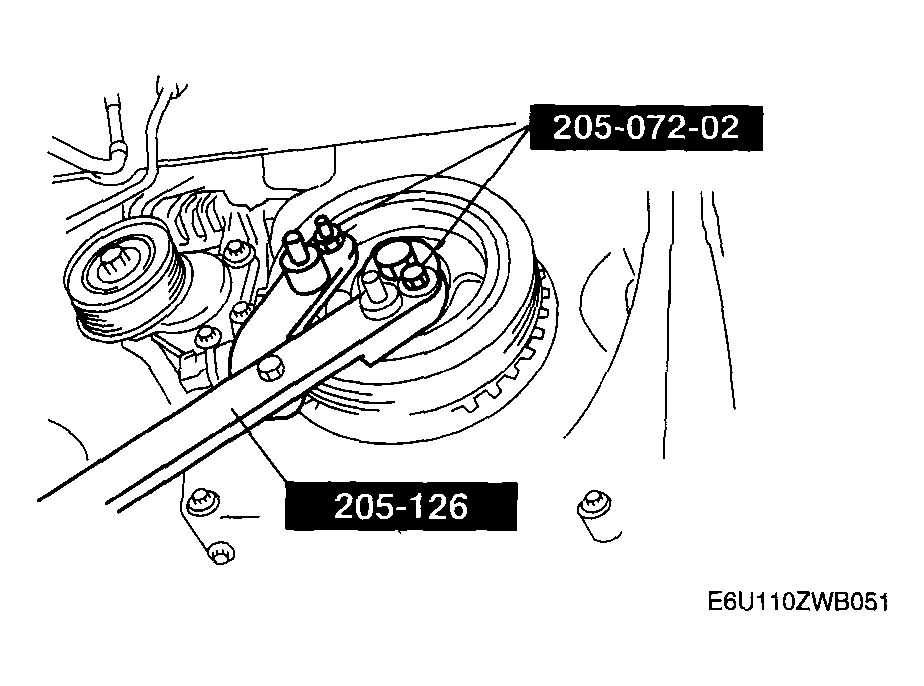

    Fig 2: Installing SST To Crankshaft Pulley
    G04324407Courtesy of MAZDA MOTORS CORP.
