Chain Tensioner Removal Note

WARNING: This page is about a different variant/trim than selected.

Press the timing chain tensioner ratchet to the left using a thin flat head screwdriver (precision screwdriver) to unlock the plunger.

Fig 1: Pressing Timing Chain Tensioner Ratchet
Courtesy of MAZDA MOTORS CORP.
Slowly press the plunger back in the direction shown in the figure while pressing the ratchet.

Fig 2: Pressing Plunger
Courtesy of MAZDA MOTORS CORP.
Release the ratchet with the plunger still pressed down.

Fig 3: Releasing Ratchet With Plunger
Courtesy of MAZDA MOTORS CORP.
Press-in the plunger until the ratchet position is as indicated in the figure, and then insert the wire to lock the plunger.

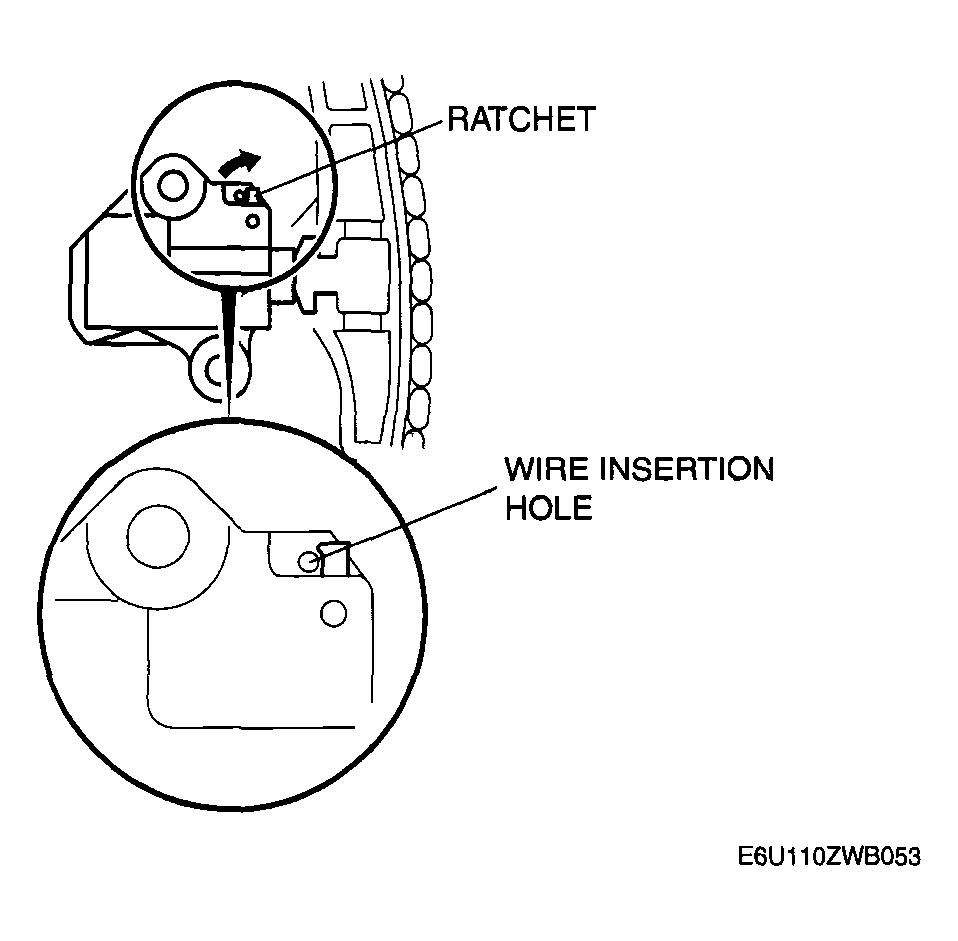

Fig 4: Identifying Wire Insertion Hole
Courtesy of MAZDA MOTORS CORP.
